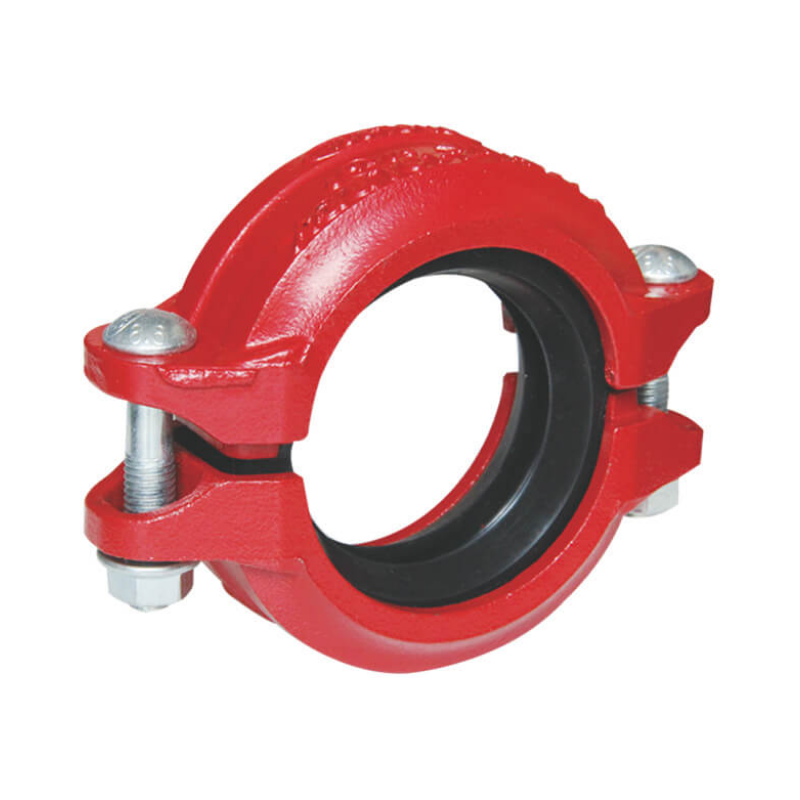

LBC Grooved Coupling 4″ Schedule 40
AED 25.20 VAT included
4″ Schedule 40 grooved coupling with EPDM gasket, 300 PSI rating. FM/UL approved for fire protection systems.
In stock
Product Code : fs0507638
Brand: LBC
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
The LBC 4″ grooved coupling features ductile iron housing, C-shaped grip design, and fire-rated EPDM gasket. Suitable for joining Schedule 40 steel pipes in fire sprinkler systems. Includes all bolts/nuts and meets NFPA 13 requirements.
Features
- For Schedule 40 steel pipe
- EPDM fire-rated gasket
- 300 PSI working pressure
- FM/UL approved
- Includes Grade 5 bolts/nuts
- Corrosion-resistant coating
- Quick assembly/disassembly
- Vibration resistant
- NFPA 13 compliant
Specifications
- Size: 4" (DN100)
- Pipe Schedule: 40
- Pressure Rating: 300 PSI @ 73°F
- Gasket: EPDM (fire-rated)
- Housing: 65-45-12 Ductile Iron
- Finish: Black epoxy coating
- Bolts: Grade 5 (2 included)
- Standards: UL 213, FM 1680
- Weight: 5.2 lbs (2.36 kg)
