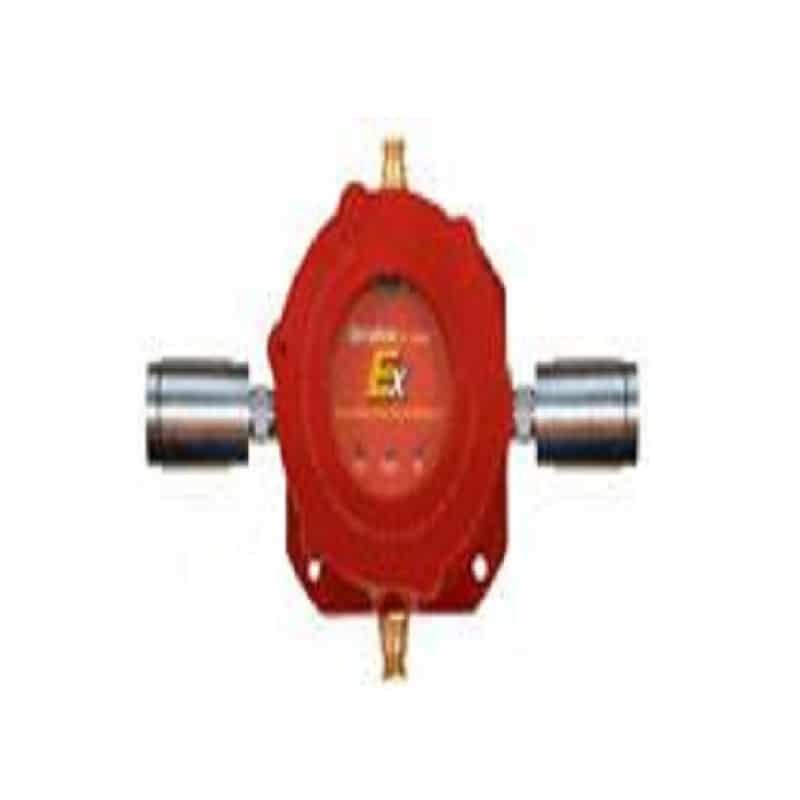

Kidde Airsense 30731 Stratos – Ex Explosion Proof Smoke Detector

Name: Kidde Airsense 30731 Stratos - Ex Explosion Proof Smoke Detector
SKU: FS00056
Availability: InStock

See all products from kidde

AED 59,024.18 VAT included

Kidde Airsense 30731 Stratos – Ex Explosion Proof Smoke Detector, Lightweight design for easy one-man installation. Very high sensitivity provided by laser based forward light scatter for reliable incipient fire detection. The detector is supplied in a cast aluminum enclosure. All sampling pipes and cables can be connected to the enclosure as a first fix operation, leaving the internals to be fitted during the final commissioning phase. Supplied complete with flame arrestors and an external filter assembly (30730).

Compare

Product Code : FS00056 Brand: Kidde Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Stratos-Ex Explosion Proof Detector Lightweight design for easy one-man installation. Very high sensitivity provided by laser based forward light scatter for reliable incipient fire detection. The detector is supplied in a cast aluminum enclosure. All sampling pipes and cables can be connected to the enclosure as a first fix operation, leaving the internals to be fitted during the final commissioning phase. Supplied complete with flame arrestors and an external filter assembly (30730). ATEX rated EEx d IIB + H2 T3. Equipment group 2 (zones 1, 2 and 3). Group gases A and B + Hydrogen. Supplied complete with flame arrestors and an external filter assembly (30730).

Features

ATEX approved
Rugged explosion proof aluminum enclosure.
Lightweight design for easy installation.
Single sampling pipe, up to 164 ft total length

Specifications

Product: Explosion Proof Smoke Detector
Model: 30731
Supply Voltage: 21.6V - 26.4V DC
Current consumption: 400mA @ 24V DC
Size: 300W x 220H x 85D
Weight: 3.8kg
Operating humidity: range 0 90% non-condensing
Detection principle: Laser light scattering mass detection and particle evaluation
Dust discrimination principle: 3D3 Laser Dust Discrimination
Sampling pipe diameter: 3/4 nominal bore
Alarm levels: 4 (Aux, Pre-alarm, Fire 1 and Fire 2)
Display LEDs: Fire, Fault, OK
Programming Command Module
