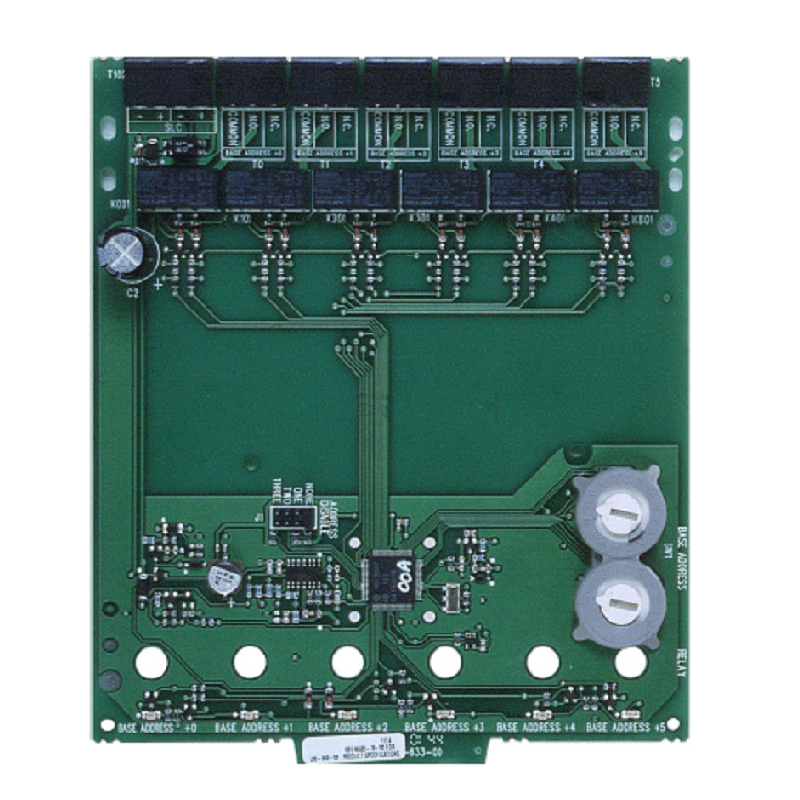

Honeywell XP6-R Relay Control Module
See all products from honeywellAED 2,544.94 VAT included
NOTIFIER’s XP6-R six-relay control module provides an intelligent fire alarm system with six Form-C relays.
The first module is addressed from 01 to 154 while the remaining modules are automatically assigned to the next five higher addresses.
Provisions are included for disabling a maximum of three unused modules. A single isolated set of dry relay contacts is provided for each module address, which is capable of being wired for either a normally-open or normally-closed operation.
In stock
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
NOTIFIER’s XP6-R six-relay control module provides an intelligent fire alarm system with six Form-C relays.
The first module is addressed from 01 to 154 while the remaining modules are automatically assigned to the next five higher addresses.
Provisions are included for disabling a maximum of three unused modules. A single isolated set of dry relay contacts is provided for each module address, which is capable of being wired for either a normally-open or normally-closed operation. The module allows the control panel to switch these contacts on command. No supervision is provided for the controlled circuit.
Each XP6-R module has panel-controlled green LED indicators.The panel can cause the LEDs to blink, latch on, or latch off.
Features
- Six addressable Form-C relay contacts
- Removable 12 AWG (3.25 mm²) to 18 AWG (0.9 mm²) plug-in terminal blocks
- Status indicators for each point
- Unused addresses may be disabled
- Rotary address switches
- FlashScan or CLIP operation
- Mount one or two modules in a BB-XP cabinet (optional)
- Mount up to six modules on a CHS-6 chassis in a CAB-3
- Series, CAB-4 Series, EQ Series, or BB-25 cabinet(optional)
- Mounting hardware included
Specifications
- Standby current: 1.45 mA (SLC current draw with all addresses used; if some addresses are disabled, the standby current decreases)
- Alarm current: 32 mA (assumes all six relays have been switched once and all six LEDs solid ON)
- Temperature range: 32°F to 120°F (0°C to 49°C)
- Humidity: 10% to 93% non-condensing
- Dimensions: 6.8in (17.27 cm) high x 5.8in (14.73 cm) wide x 1.0in (2.54 cm) deep
- Shipping weight: 1.1 lb. (0.5 kg) including packaging
- Mounting options: CHS-6 chassis, BB-25 cabinet, BB-XPvcabinet, CAB-3 Series (see DN-3549) cabinet, CAB-4 Series(see DN-6857) cabinet, or EQ Series (see DN-60229) cabinet
- Wire gauge: 12 AWG (3.25 mm²) to 18 AWG (0.9 mm²)
- Maximum SLC wiring resistance: 40 or 50 ohms, panel dependent
- Relay current: 30 mA/relay pulse (15.6 ms pulse duration),pulse under panel control
- Relay contact ratings: 30 VDC; 70.7 VAC
