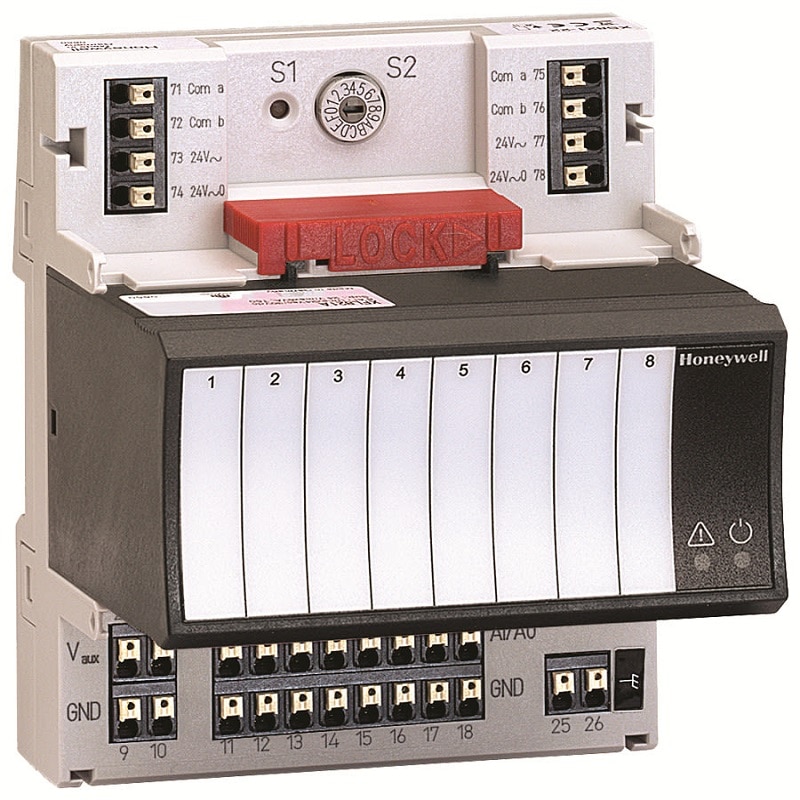

Honeywell XFL823A – Distributed I/O, 12 Binary Input Module

Name: Honeywell XFL823A - Distributed I/O, 12 Binary Input Module
SKU: fs108156
Availability: InStock

See all products from honeywell

AED 2,625.00 VAT included

Distributed input/output modules allow you to monitor and control remote points with just a two-wire communication bus back to the main controller.

In stock

Compare

Product Code : fs108156 Brand: Honeywell Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Distributed input/output modules allow you to monitor and control remote points with just a two-wire communication bus back to the main controller.

EXCEL 5000 DDC controller for all HVAC control applications, and building automation functionalities. The controller can be applied for stand-alone operation, dial-up and in network systems. For all buildings.

Features

Control software: free programmable with CARE software programmable with standard modal software modules.
Hardware inputs: Panel Bus and LON Bus input modules available for:
measurement of temperature, relative humidity, pressure etc..
Hardware outputs: Panel Bus and LON Bus input modules available for: measurement of temperature, relative humidity, pressure etc. Contact status from relays, thermostats etc.
Operator panels: RS232 port available for operator panel XI582 or XI882; these panels can be used for adjustment of set points, alarm limits, fixing in/outputs, override functions, graphic trending etc
Management applications: XBS or EBI PC software can be applied for a central operator and all other building automation functions.
Stand-alone operation: yes
Bus system description: communication bus (physical C-bus or C-bus over LON) for data exchange with other EXCEL 5000 controllers and for building automation management systems (max. 30 devices per bus, incl. Centrals / Management Frontends) LonWorks(R) bus,Panel bus for communication to Panel I/O modules.

Specifications

Transceiver type: LonWorks(R) FTT10A
Mounting: DIN rail
Protection class: IP30
Memory back-up: goldcap capacitor for 72 hours buffer
Power supply: 24V ac/dc
Modem connection: directly connectable
C-bus connection: directly connectable
LonWorks(R) connection: directly connectable
Panel bus connection: directly connectable Smoke Control (UUKL/UL864) certified

Questions & Answers (1)
Reviews (0)

Questions & Answers (1)

Questions and answers of the customers

0 votes

Q Why is it used and where and is it suitable for commercial use? answer now
Asked by Junaid on December 3, 2022 10:49 am

A
Hi!

The Honeywell XFL823A – Distributed I/O, 12 Binary Input Module , ip30 rating is Protected from touch by fingers and objects greater than 12 millimetres. Protected from long term immersion up to a specified pressure, but should be avoid from dust and commercial use.
