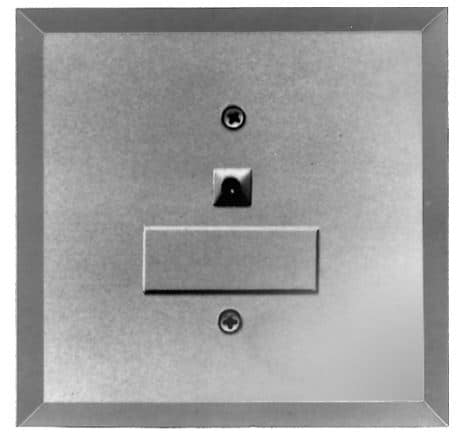

Honeywell TC909A1009 Dual Input Module
See all products from honeywellAED 892.50 VAT included
Honeywell TC909A1009 Dual Input Module are intended for use in intelligent, 2-wire systems where the individual address of each module is selected using the built-in rotary decade switches.
In stock
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Honeywell TC909A1009 Dual Input Module are intended for use in intelligent, 2-wire systems where the individual address of each module is selected using the built-in rotary decade switches. The TC809A provides either a 2-wire or 4-wire fault tolerant initiating circuit for normally open contact fire alarm, supervisory, or security devices. The TC809A has a panel controlled LED indicator.
Features
- Individual addressable input for fire alarm or security devices.
- Full analog supervision of circuits.
- TC809A have an integral LED to indicate scan, alarm, or activation.
- TC809A monitors either two- or four-wire (fault tolerant) initiating device circuits.
Specifications
- FS90: AE Board.
- XLS1000: 3-AADC.
- Electrical Ratings: Operating Voltage: 15 to 32 Vdc.
- Temperature Ratings: 32øF to 120øF (0øC to 49øC).
- Humidity Ratings: 10% to 93%, non-condensing.
- EOL Resistance: 47K ohms.
- Maximum IDC Wiring Resistance: 40 ohms.
- Mounting: Mount directly to a 4 in. (102 mm) standard electrical box with a minimum depth of 2-1/8 in. (54 mm). Surface mounted electrical boxes (SSDSMB500) are available.
- Dimensions: 4-1/2 in. (114 mm) high x 4 in. (102 mm) wide x 1-1/4 in. (32 mm) deep.
- Approvals: UL 864 listed; FM approved, CSFM listed.
- Accessories: SSDSMB500 Electrical Box
