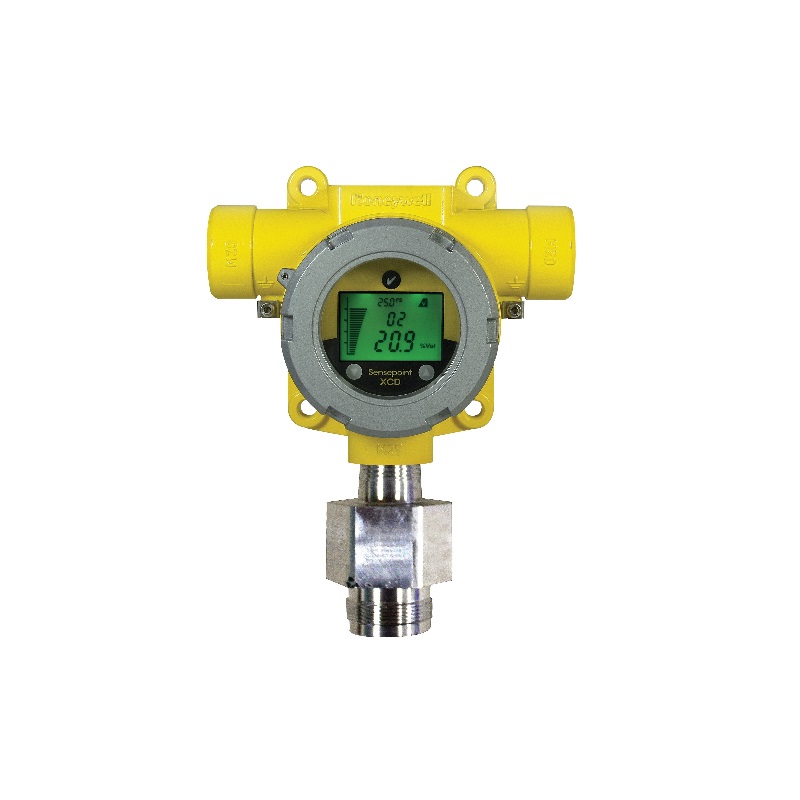

Honeywell SPXCDULNRFD Sensepoint XCD RFD Transmitter

Name: Honeywell SPXCDULNRFD Sensepoint XCD RFD Transmitter
SKU: fs05025135
Availability: InStock

AED 4,147.50 VAT included

Compare

Product Code : fs05025135 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Honeywell SPXCDULNRFD Sensepoint XCD RFD Transmitter has been specifically designed for use with remotely mounted flammable gas sensors. The XCD RFD is certified for use in Class I Div 1 rated areas and offers the one-man, non-intrusive, operation, and reduces routine maintenance time and costs. The XCD transmitter includes two programmable alarm/fault relays as well as an industry-standard 4-20mA output, with optional Modbus RTU. Calibration and relay operation of the transmitter may be adjusted via the transmitters’ backlit LCD. Outputs are automatically inhibited during adjustment thereby reducing the risk of false alarms at the control panel during maintenance.

Features

Compatible with high temperature sensors for use in and around Gas Turbine Enclosures and solvent based printing and coating drying ovens
High temperature gas sensors have thermally matched beads for highest accuracy and stability enabling low alarm levels
Transmitter can be mounted in easy to access area even if sensor is in a hard to access or restricted access area
Standard temperature catalytic and infrared sensor types also available
Compliant with the requirements of HSE guidance note PM84
Sensor can be mounted up to 30 metres (100 feet) from transmitter
Compliant with the requirements of HSE guidance note PM84

Specifications

Product: RFD Transmitter
Brand: Honeywell
Part No: SPXCDULNRFD
Input Voltage Range: 18 to 32VDC (24VDC nominal)
Max Power Consumption: 5 Watts
Current Output: Sink or source
Transmitter Housing Sensor: Epoxy painted aluminium alloy LM25 or 316 stainless steel
IP Rating: IP66 in accordance with EN60529:1992
