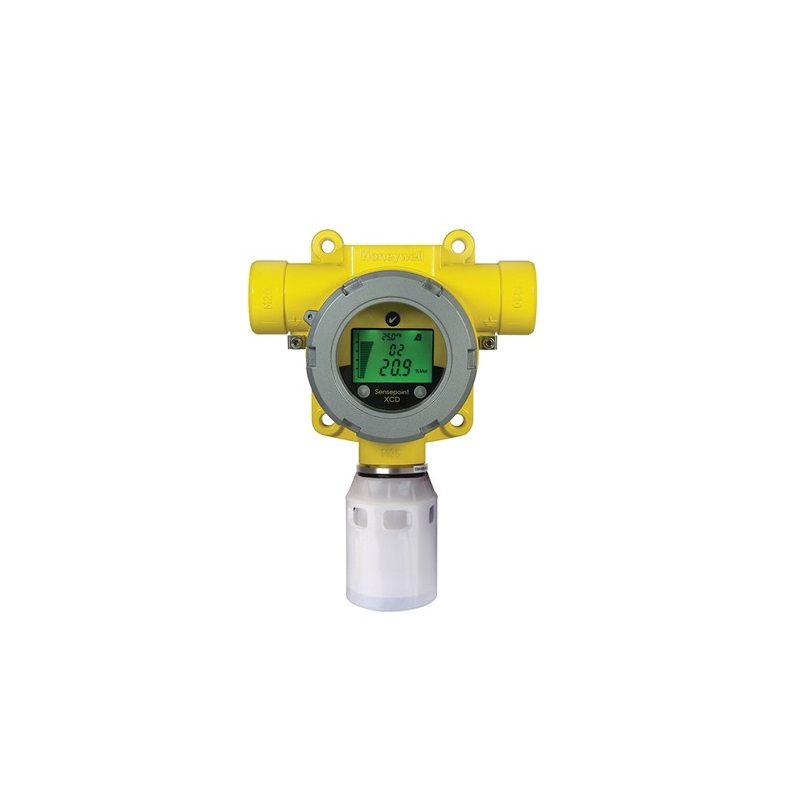

Honeywell SPXCDASMB2 XCD Gas Detector, 4 to 20 mA output

Name: Honeywell SPXCDASMB2 XCD Gas Detector, 4 to 20 mA output
SKU: fs05025044
Availability: InStock

See all products from honeywell

AED 6,825.00 VAT included

Compare

Product Code : fs05025044 Brand: Honeywell Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Honeywell SPXCDASMB2 XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted 316SS, includes infrared carbon dioxide sensor cartridge 0 to 5.0% v/v, includes nylon weather protection by Honeywell Analytics. Honeywell provides easy-to-use, low-maintenance sensory devices for monitoring explosive atmospheric conditions in a variety of industrial settings. The Sensepoint XCD system monitors for explosive oxygen gas, toxic gas, and flammable conditions and constantly relays status through transmitters utilizing a simple traffic light LCD system which can be easily seen and understood from a distance.

Features

User friendly and intuitive tri-colour backlit display with digits, bar graph and icons
MODBUS communications for remote diagnostics/configuration
Selectable sink or source 4-20mA output
Fully configurable via magnetic switches
Auto-inhibit during maintenance

Specifications

Product: XCD Gas Detector
Brand: Honeywell
Model: SPXCDASMB2
Input Voltage Range: 16 to 32VDC (24VDC nominal)
Communication: RS485, MODBUS RTU
Material Housing: Epoxy painted aluminium alloy LM25 or 316 stainless steel Sensor: 316 stainless steel
IP Rating: IP66 in accordance with EN60529:1992
Certified Temperature Range: 40ºF to +149ºF (-40ºC to +65ºC)
