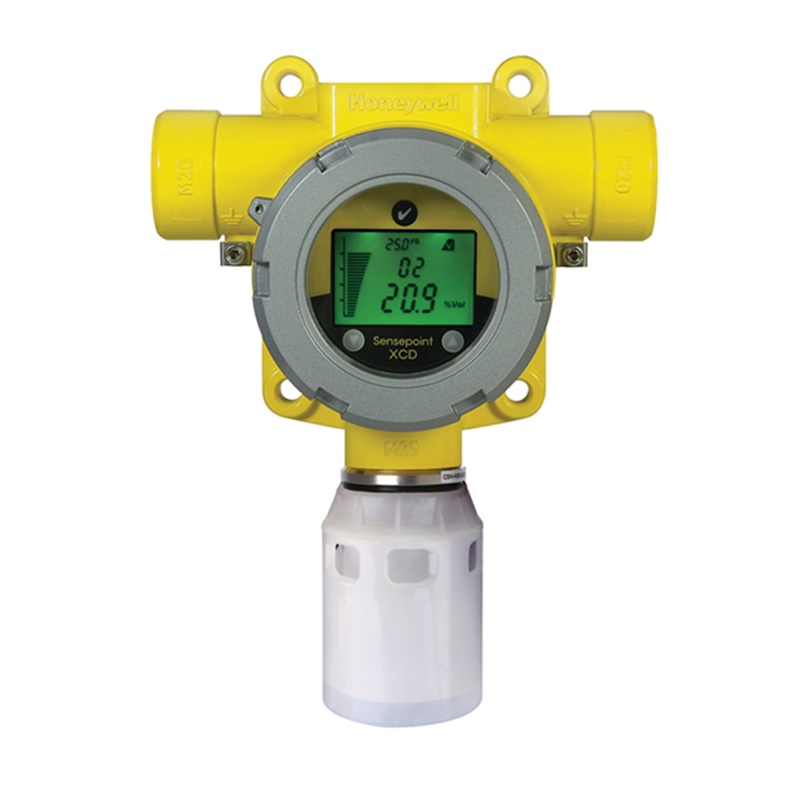

Honeywell Sensepoint XCD SPXCDALMPX Fixed Industrial Gas Detector

Name: Honeywell Sensepoint XCD SPXCDALMPX Fixed Industrial Gas Detector
SKU: fs05022565
Availability: InStock

AED 5,321.40 VAT included

Compare

Product Code : fs05022565 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Honeywell Sensepoint XCD SPXCDALMPX Fixed Industrial Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted LM25, includes infrared propane sensor cartridge 0 to 100%LEL, user-selectable FSD between 20% and 100%LEL (10%LEL resolution), includes nylon weather protection specifically designed for use with remotely mounted flammable gas sensors. This configuration is ideal for applications where the sensor is required to be mounted remotely from the transmitter in areas where temperatures are well above ambient (up to 150°C/302°F), or that are difficult to access. The transmitter can be mounted at a suitable location away from this area where it is easy to access, view its display, and interact with via the user interface.

Features

Compatible with high temperature sensors for use in and around Gas Turbine Enclosures and solvent based printing and coating drying ovens
High temperature gas sensors have thermally matched beads for highest accuracy and stability enabling low alarm levels
Transmitter can be mounted in easy to access area even if sensor is in a hard to access or restricted access area
Standard temperature catalytic and infrared sensor types also available
Sensor can be mounted up to 30 metres (100 feet) from transmitter
Compliant with the requirements of HSE guidance note PM84

Specifications

Product: Sensepoint XCD Fixed Industrial Gas Detector
Manufacturer : Honeywell
Product No. : SPXCDALMPX
A - Certification : ATEX/IECEx/KTL/PA and GB
Input Voltage Range: 16 to 32VDC (24VDC nominal)
Material Housing: Epoxy painted aluminium alloy LM25 or 316 stainless steel
Terminals: 15 x screw terminals suitable for wire diameter 0.5mm2 to 2.5mm2 (20AWG to 13AWG)
Communication: RS485, MODBUS RTU (Optional)
IP Rating: IP66 in accordance with EN60529:1992
Weight : 4.54 Kg
