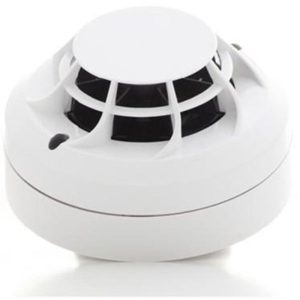

Honeywell Morley - Fixed Temperature 78°C Thermal Detector - HM-HTSE-S2-IV AED 288.75 VAT included

Next product

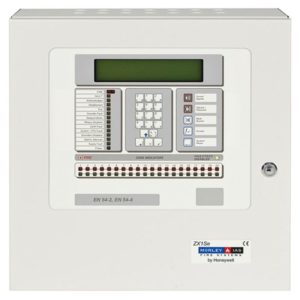

Honeywell Morley - ZX1Se Addressable Fire Alarm 1 Loop Control Panel - 722-001-301 AED 7,245.00 VAT included

Click to enlarge

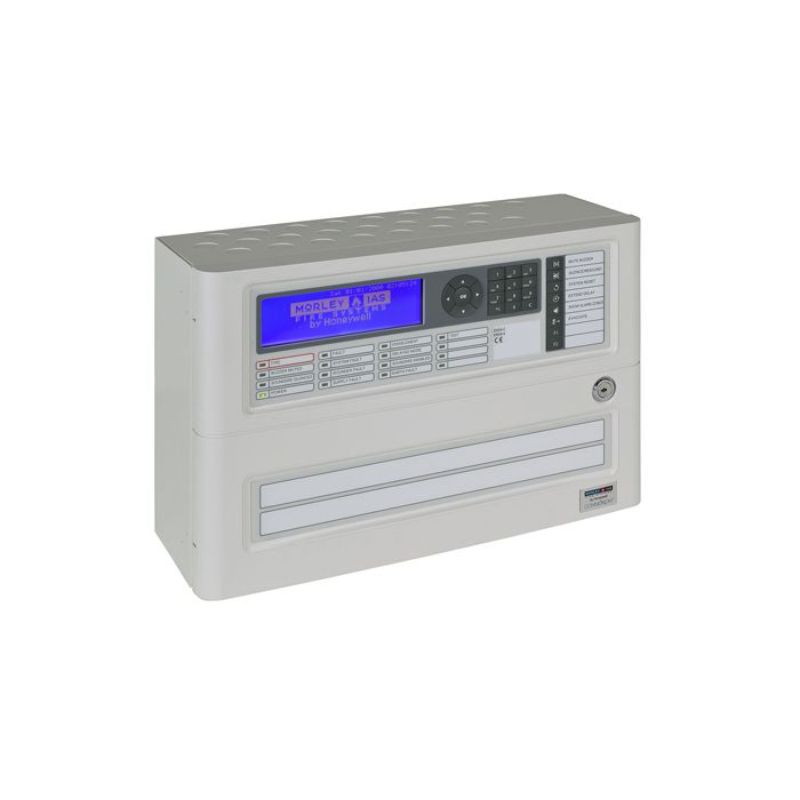

Honeywell Morley – DXc1 Addressable Single Loop Fire Alarm Control Panel – 714-001-115

Name: Honeywell Morley - DXc1 Addressable Single Loop Fire Alarm Control Panel - 714-001-115
SKU: fs050603
Availability: InStock

See all products from honeywell-morley

AED 3,150.00 VAT included

In stock

Compare

Product Code : fs050603 Brand: Honeywell Morley Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

DXc1 is a single-loop control panel. It can operate as stand-alone or networked system with other DXc series panels up to 16 loops. The system can be expanded up to 16 nos. of DXc1 or 8 nos. of DXc2 or 4 nos. of DXc4 or a mix & match of different variants up to 16 loop networked solution.

Features

1 analogue loop
6x40 characters, blue liquid crystal display with backlight illumination
Option to upload company logo
Configuration by Keypad and PC
80 Fire Zones (Can be used with or without Zone LEDs)
RS-485 port for repeater connection
2 programmable output sounder circuits (monitored)
Fire, Fault and Auxiliary relay (one each)
Networking up to 16 loops
Loop-Battery calculator for reliable

Specifications

Brand: Honeywell Morley
Model: 714-001-115
Display: 6x40 character (240x64 pixels) blue liquid crystal display with backlight illumination
Control Keys: Evacuate, Silence/Resound, Mute, Buzzer, Extend Delay, System Reset, Show Alarm Zones
Programmable Keys: 2 independent programmable function Keys and LED indicators
Programming Keys: 12 button alpha numeric key pad inc. cancel and return keys plus 4 navigation keys and an OK key
Indicators: Fire, Fault, Disablement, Test, Buzzer Muted, Delayed Mode, Sounders Silenced, Sounders Disabled and Power. Also dedicated fault LEDs for System Fault, Supply Fault and Earth Fault. 40 or 80 LED fire zone indicators optional
