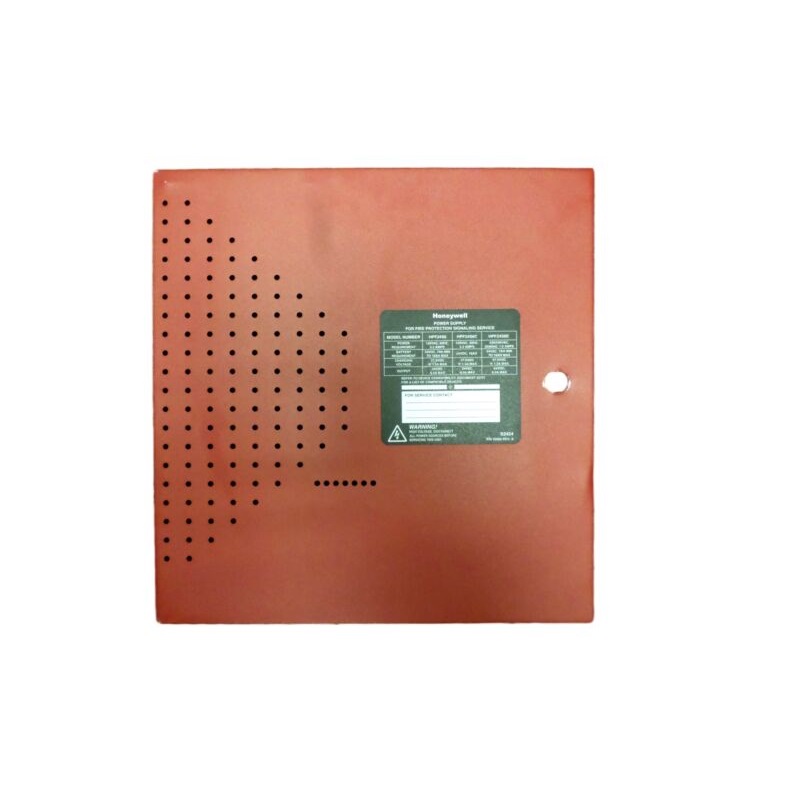

Honeywell HPF24S6E 6A 24VDC F/A 220 Remote Fire Alarm Power Supply Unit

Name: Honeywell HPF24S6E 6A 24VDC F/A 220 Remote Fire Alarm Power Supply Unit
SKU: fs05024071
Availability: InStock

See all products from honeywell

AED 5,546.63 VAT included

Compare

Product Code : fs05024071 Brand: Honeywell Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Honeywell HPF24S6E 6A 24VDC F/A 220 Remote Fire Alarm Power Supply Unit may be connected to any 12- or 24-volt Fire Alarm Control Panel (FACP) or may stand alone. Primary applications include Notification Appliance (bell) Circuit (NAC) expansion (to support ADA requirements and NAC synchronization) or auxiliary power to support 24-volt system accessories. The supply provides regulated and filtered 24 VDC power to four Notification Appliance Circuits configured as either four Class B (Style Y) or Class A (Style A, with ZNAC-4 option module). Alternately, the four outputs may be configured as all nonresettable or all resettable or two non-resettable and two resettable. They also contain a battery charger capable of charging up to 18 Amp Hour batteries.

Features

Fully regulated and filtered power output (optimal for powering four-wire smoke detectors, annunciators and other system peripherals requiring regulated/filtered power)
Works with virtually any UL 864 fire alarm control which utilizes an industry-standard reverse-polarity notification circuit (including unfiltered and unregulated bell power)
Contains two, fully-isolated input/control circuits (triggered from FACP Notification Appliance Circuit [NAC expander mode] or jumpered permanently on [standalone mode])
Instantaneous switchover to standby battery (if equipped) when AC fails, maintaining power to all attached devices without intervention
Two outputs can be used for constant power devices such as door holders (power drops upon alarm)
Fully supervised power supply, battery and Notification Appliance Circuits
