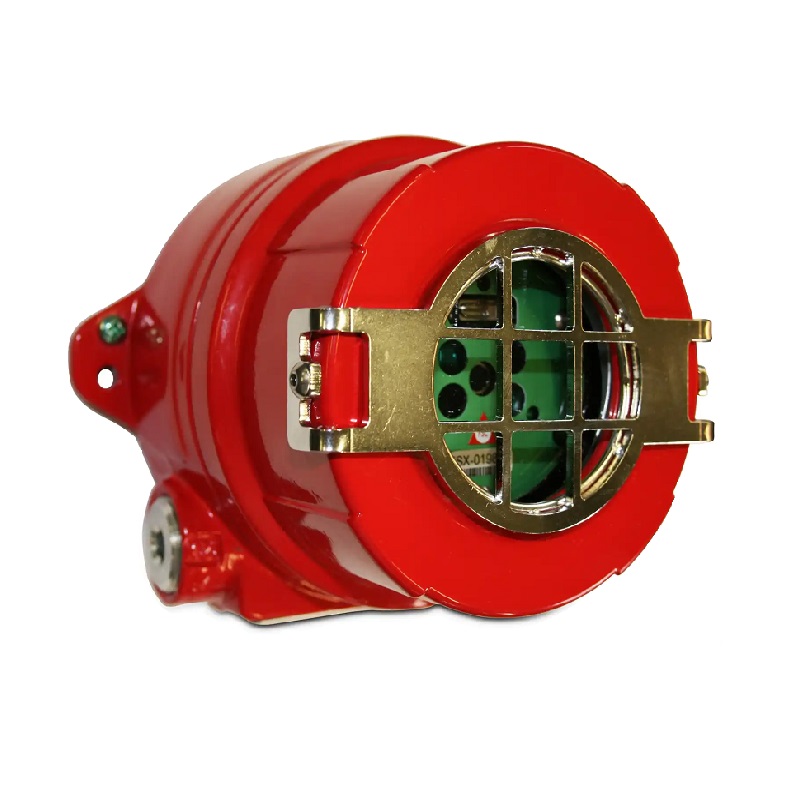

Honeywell fs24x-912-24-1 QuadBand™ IR3+ Fire and Flame Detector, 316 Stainless Steel Encl
See all products from honeywellAED 29,400.00 VAT included
Description
Honeywell fs24x-912-24-1 QuadBand™ IR3+ Fire and Flame Detector, 316 Stainless Steel Encl., (2) M25 entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module for FS24X Detectors factory installed by Honeywell Analytics. The Fire Sentry FS24X is the latest generation high technology Multi-Spectrum Triple IR (IR/IR/IR/Visible) Flame Detector, which is part of our FSX family of advanced technology Electro-Optical fire detectors. Using our patented* WideBand IR™, WideBand 4.3 micron IR™, and Visible detection technology, the Fire Sentry FS24X is a quantum leap in flame detection. Sophisticated software algorithms and dual microprocessors ensure that the Fire Sentry FS24X has the highest flame detection performance combined with optimal false alarm rejection.
Features
- Detects hydrocarbon and non-hydrocarbon fuel fires in all environmental conditions
- Range greater than 200 feet to 1 sq. ft. heptane fire
- Visible Sensor for optimum false alarm rejection
- Widest operating temperature range
- Built-in RS-485 ModBus Communication
- High RFI and EMI immunity
- Low power consumption
- Arc welding immunity
- FM approved
Specifications
- Product: Fame Detector
- Brand: Honeywell
- Model: fs24x-912-24-1
- Operating voltage: 24 VDC nominal (18-32 VDC) - regulated
- Field of view: FS24X-9: 90° cone of vision, ± 45° from on axis, FS24X-2: 110° cone of vision, ± 55° from on axis
- Spectral Sensitivity: Visible: 400 - 700 nanometres
- Power Consumption: Operating: 56 mA @ 24 Vdc nominal
- Loop Resistance: 50 - 400 Ohms
- Visual Indicators: Green LED: Power; Red LED: Alarm; Yellow LED: Fault
- Enclosure Type: IP66 and NEMA 4 & 4X
