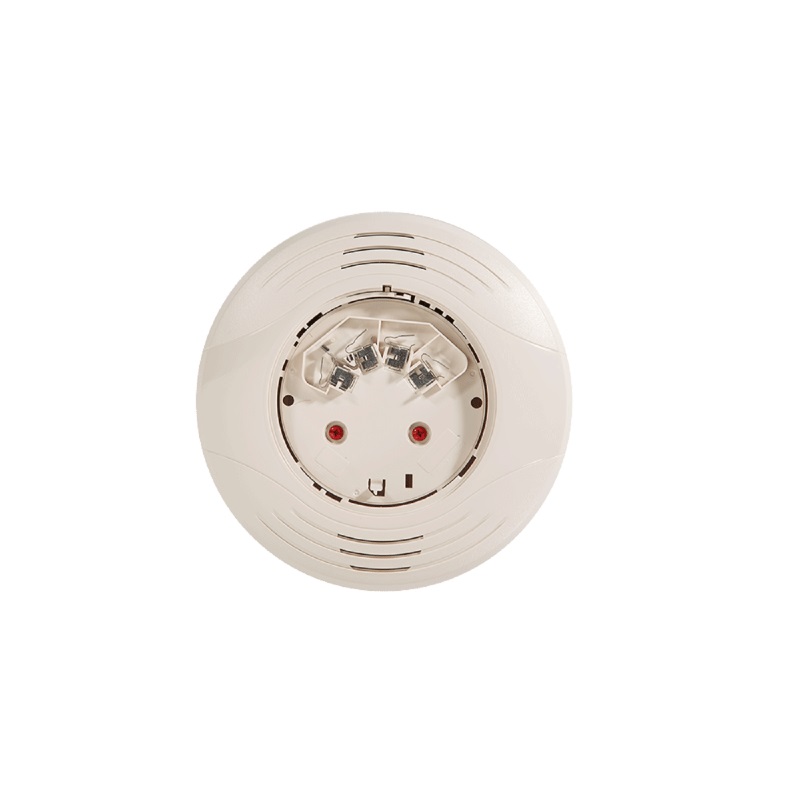

Honeywell EBS Intelligent Sounder Base

Name: Honeywell EBS Intelligent Sounder Base
SKU: fs108204
Availability: InStock

AED 696.15 VAT included

Honeywell EBS Intelligent Sounder Base was designed specifically to meet the needs of dwelling unit applications. It offers maximum flexibility in configuration and operation to meet or exceed the requirements of UL268 and UL464. The sounder base is capable of producing either the distinctive three-pulse temporal pattern (ANSI Temporal 3) fire alarm signal now required by NFPA 72 for commercial and residential applications or a continuous tone by simply removing the included jumper from the device.

Compare

Product Code : fs108204 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

The sounder base is intended for use with intelligent systems. The sounder base requires an external 24 VDC power supply. The connections for the external power supply and the communication loop are isolated to prevent electrical interaction between them. Refer to the panel manual for the maximum allowable number of units per loop.

Features

It offers maximum flexibility in configuration and operation to meet or exceed the requirements of UL268 and UL464
sounder base was designed specifically to meet the needs of dwelling unit applications
sounder base is capable of producing either the distinctive three-pulse temporal pattern
fire alarm signal now required by NFPA 72 for commercial and residential applications
continuous tone by simply removing the included jumper from the device.
The sounder base is intended for use with intelligent systems
base requires an external 24 VDC power supply

Specifications

Product: Addressable Sounder Base
Brand: Honeywell
Model: EBS
Base Diameter: 6.85 in (17.4 cm)
Base Height (less sensor): 1.61 in (4.1 cm)
Operating Temperature Range: Refer to applicable sensor Operating Temperature Range using the Base/Sensor
Operating Humidity Range: 10% to 93% relative humidity (Non-condensing)
External Supply Voltage: 16 to 33 VDC (VFWR)
Standby Current: 500 μA maximum
