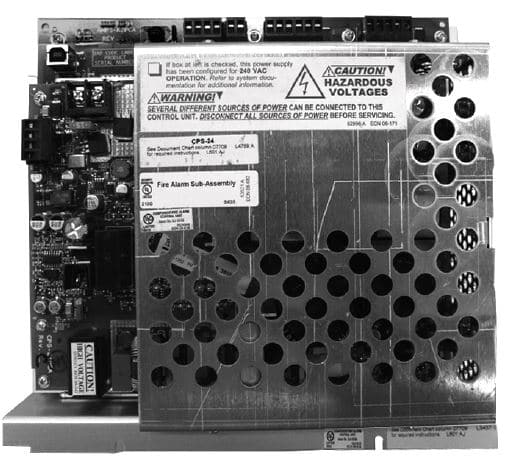

Honeywell AMPS-24E Power Supply Unit

Name: Honeywell AMPS-24E Power Supply Unit
SKU: fs10204
Availability: InStock

See all products from honeywell

AED 11,626.13 VAT included

NOTIFIERs AMPS-24/E is an addressable power supply and battery charger with up to three 24 VDC outputs.

Compare

Product Code : fs10204 Brand: Honeywell Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

NOTIFIERs AMPS-24/E is an addressable power supply and battery charger with up to three 24 VDC outputs. It operates in either FlashScan© or CLIP (Classic Loop Interface Protocol) mode with the NFS-3030/NFS2-3030 Fire Alarm Control Panel (FACP). It can also be used as the primary power supply for the NCA-2 Network Control Annunciator.

Agency Listings and Approvals

These listings and approvals apply to the AMPS-24/E power supply. In some cases, certain modules may not be listed by certain approval agencies, or listing may be in process. Consult factory for latest listing status.

UL: S635
ULC: CS118
City of Chicago
City of Denver
MEA: 345-02-E
CSFM: 7165-0028:224
FM: Approved
FDNY: #6026

Product Line Information
AMPS-24: Addressable power supply/battery charger
AMPS-24E: Same as AMPS-24: 220-240VAC operation

Features

Addressable by NFS-3030/NFS2-3030 FACP.
Selectable charging current charges 7 AH to 200 AH batteries.
Isolated Signaling Line Circuit (SLC) interface.
Trouble bus input for use with normally-open dry contacts or open-collector circuit.
USB Type B connector for programming installation parameters.
Brownout detection.
Battery/battery charger supervision.
Secondary Power Auxiliary Outputs: 24V @ 0.5A and 5V @ 0.15A.
AC loss detection and AC loss delay reporting.
Mounts in a CAB-4 Series enclosure, EQ Cabinet Series enclosure, BB-25, BB-100, or BB-200 Battery Backbox.

Specifications

Primary (AC) power:
AMPS24: 110-120 VAC 50/60 Hz input, 5 A maximum;
AMPS24E: 220-240 VAC 50/60 Hz input, 2.5 A maximum.
MAIN 24V Output - filtered power-limited power. Refer to table for configuration/current information.
AUX 24V - provides filtered power-limited power for additional components. Refer to table above for configuration/ current information.
Secondary power (battery) charging circuit: Current-limited, sealed lead-acid battery charger which will charge 7 to 200AH batteries. Selectable charging current: 1.0 A, 2.0 A or 5.0 A.
Secondary power auxiliary outputs.
Wire sizes: 10 AWG (5.26 mmý) to 22 AWG (0.326 mmý).
Battery fuse (F2): 15 A, fast-acting.
Shipping Weight: 4.25 lb
