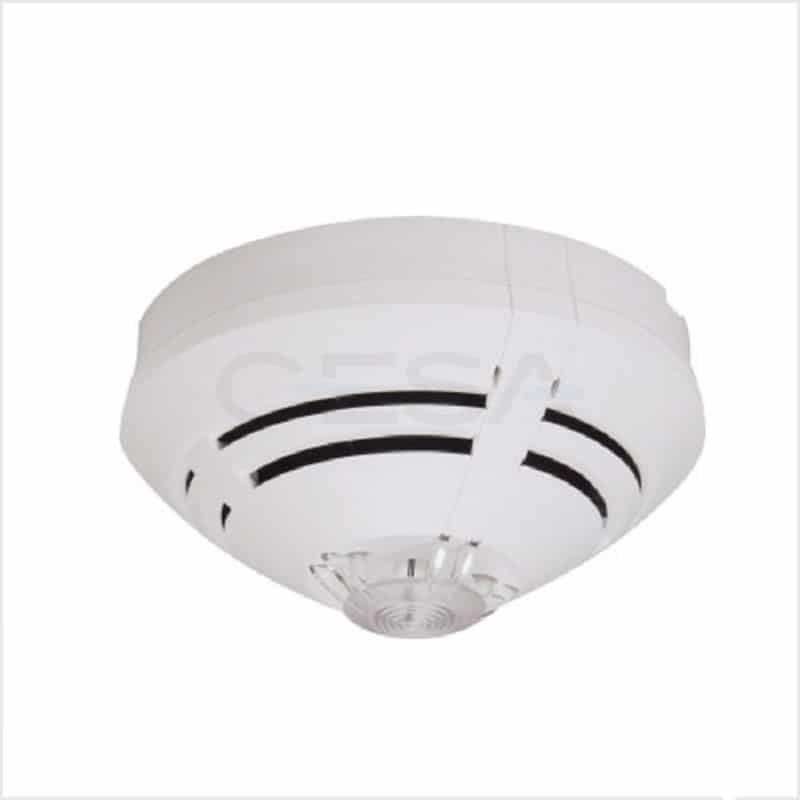

Honeywell 802374 Multi-sensor Fire Detector

Name: Honeywell 802374 Multi-sensor Fire Detector
SKU: fs108157
Availability: InStock

See all products from honeywell

AED 525.00 VAT included

Honeywell 802374 Multi-sensor fire detector using patented dual angle optical scatter as well as additional heat detector sensor evaluation to guarantee the detection of different types of fire from smoldering fires to open fires with constant sensitivity level. Smoke sensor signal identification to ensure smoke classification and reduction of false alarm caused by interference,for instance,water vapor and dust.

Compare

Product Code : fs108157 Brand: Honeywell Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Multi sensor fire detector using patented dual angle optical scatter as well as additional heat detector sensor evaluation to guarantee the detection of different types of fire from smoldering fires to open fires with constant sensitivity level. Smoke sensor signal identification to ensure smoke classification and reduction of false alarm caused by interference,for instance,water vapor and dust.

Features

Electrochemical & Catalytic Bead Sensor Technologies
Display of TWA, STEL, Peak Daily Value
Non-Intrusive Magnetic Calibration
Status Indicating Warning Screens
RS-485 Communication
Three Onboard Relays
4-20 mA Output
Built-in Clock

Specifications

Size: 5.7 x 7.5 x 5.1 in. (14.5 x 19.1 x 13 cm)
Weight: 4.2 lb. (1.95 kg)
Operating Temp: -40 to 158 F (-40 to 70 C)
Ambient Humidity: 5-95% RH Non-Condensing
Sensor Type: Fuel Gases: Catalytic Toxic Gases & Oxygen: Electrochemical
Input Power: 24 VDC nominal, range 18 to 30 VDC, 0.3 A DC Total Max. 24 VAC nominal, range 12 to 24 VAC, 0.3 A AC Total Max. (AC must not be grounded)
Fuse F2 on Main Board: Polyswitch 750 mA Polyswitch device resets after fault is cleared and power to the circuit is removed
Relays Three Relays, SPDT, Dry Contacts 1.0 A maximum at 30 VDC (resistive load) 0.3 A maximum at 125 VAC (resistive load)
Display LCD: graphic display with backlight
Keypad Three Non-Intrusive Magnetic switches - F1, F2, F3
Enclosure: Aluminum Pressure Die-Casting Entries: 2 x 3/4 "NPT
Certificate: FM 3615, CSA C22.2 No.30 Class I, Groups A, B, C, D, Class II, Groups E, F, G; Class III Enclosure Type: 4X, Division 1 Division 2 ANSI / ISA 12.22.01 Class I, Zone 1 AExd II C, IP66 Zone 1 CSA E60079-1 Ex d II C, Class I, Zone 1, IP66
Status Indicators: Five Status LED's RS-485 TX Status (Green) RS-485 RX Status (Green) Relay 1 Status (Network) Relay 2 Status (Network) Relay 2 Status (Network)
