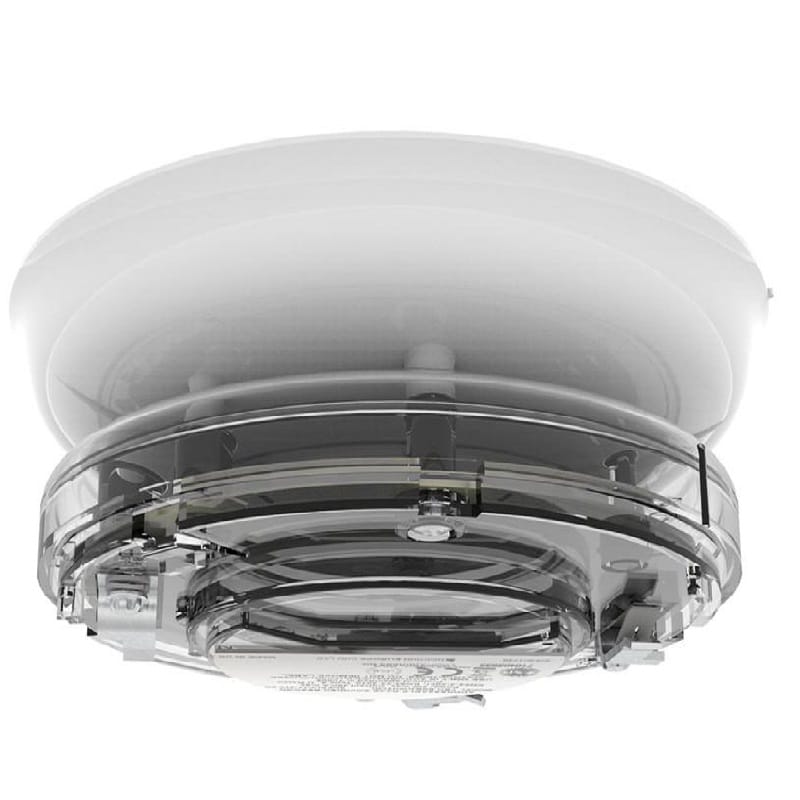

Hochiki YBO-BSB2 Base Sounder Beacon Ivory Case, White Leds

Name: Hochiki YBO-BSB2 Base Sounder Beacon Ivory Case, White Leds
SKU: fs107066
Availability: InStock

See all products from hochiki

AED 210.00 VAT included

Model YBO-BSB2/WL is an O Rated EN54-23 compliant addressable loop powered Base Sounder with integral Beacon, innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption.

The unit is designed to fit to the Standard Base (YBN-R/3) or the Isolator Base (YBN-R/3(SCI)) and can be fitted with any of the ESP Range of Sensors, Beacons or Remote Indicators. The unit can also be converted into a wall sounder beacon with the simple addition of a Cap (SI/CAP2). The sounder is Ingress Protection rated to IP21 and for internal use only.

In stock

Compare

Product Code : fs107066 Brand: Hochiki Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

An Auto-Shutdown feature allows the user to set a fixed time within which the sounder or beacon will operate, before automatically shutting down, cutting noise pollution in the case of the sounder element. Sounder and Beacon elements can be operated independently from each other. Dependent on control panel compatibility.

Features

Variable Sound Output: 50 ~ 98 dB(A) (±2 dB(A)) output at 1 metre
Single Loop Address - addressed via the TCH-B100 Hand Held Programmer
Sounder and Beacon can operate independently
0.5 or 1Hz flash frequency
Fits Hochiki Standard or Isolator Base and supports ESP Sensors, Addressable Beacons and Addressable Remote Indicator
51 User-Selectable Tones (all tones EN54-3 compatible)
Auto-Shutdown feature prevents noisepollution
O' Rated Beacon to EN54-23
Available with Red or White LEDs
Available with White or Ivory case

Specifications

Operating Voltage: 17 ~ 41 Vdc
Low Power Mode (typ): 110 µA
Quiescent Current (typ): 250 µA
Sounding Current (typ): 0.8 mA (50 dB(A) @ 1 m) ~ 16 mA (98 dB(A) @ 1 m)
Additional Current when Beacon active: + 7 mA
Sound Output (at 1 metre): 50 ~ 98 dB(A) (±2 dB(A)) @ 24 Vdc or above (EN54-3 compliant)
Number of Tones: 51
Tone Frequency Range: 300 Hz ~ 2850 Hz
Operating Temperature Range: -10 C to +50 C
Storage Temperature Range: -30 C to +70 C
Maximum Humidity: 95% RH - Non Condensing (at 40 C)
Colour / Case Material: Ivory or White / PC+PS+GF5
Lens Material: Translucent PC
Ingress Protection Rating: IP21
Weight (g) / Dimensions (mm): 160 / H113 x W113 x D43; Base Fixing Centres (mm): 48 ~ 74
