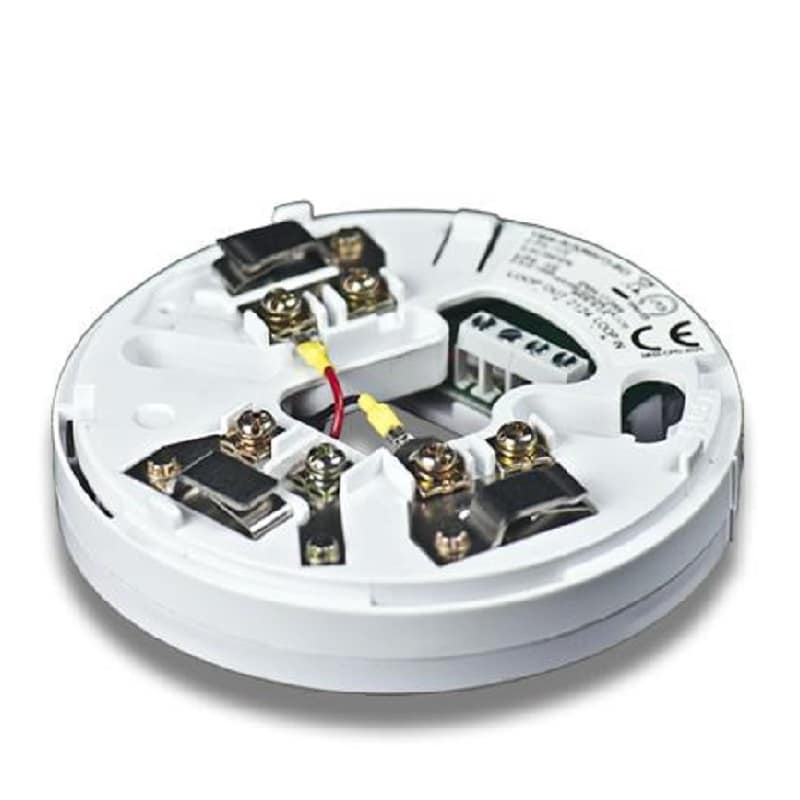

Hochiki YBN-R/3(SCI) Short Circuit Isolator Base (Ivory)
See all products from hochikiAED 63.00 VAT included
Hochiki YBN-R/3(SCI) is a sensor mounting base featuring an integral short-circuit isolator which will detect and isolate short-circuits on the loop. When a short-circuit is detected during power up the unit will drop the power to the rest of the loop. The YBN-R/3(SCI) is compatible with the ESP range of sensors (see compatibility chart below). The unit does not require a loop address.
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Hochiki YBN-R/3(SCI) is a sensor mounting base featuring an integral short-circuit isolator which will detect and isolate short-circuits on the loop. When a short-circuit is detected during power up the unit will drop the power to the rest of the loop. The YBN-R/3(SCI) is compatible with the ESP range of sensors and does not require a loop address. A remote fire LED facility is provided when a sensor is attached to the base.
Features
- Features integral SCI
- Easy to fit
- Slim profile
- Matches standard base colours
- SIL Level 2 approved variants available
Specifications
- Operating Voltage: 17 - 41 V dc (24 V dc nominal)
- Standby current: 60 µA
- Current drawn by isolator during fault condition: < 4 mA
- Maximum current consumption from remote LED: 10 mA (limited by attached sensor)
- Maximum continuous current: 1 A
- Maximum quantity per loop: 127
- Ambient temperature range: -10 C to +50 C
- Relative humidity: 10% to 95% RH (at 40?C)
- Colour and case material: Ivory or White ABS
- Fixing centres: 48 mm through to 74 mm
- Maximum wire thickness: 2.5 mm²/terminal
- Dimensions (mm): 100 (diameter) x 13.7 (height)
- Weight (g): 80
Questions and answers of the customers
There are no questions yet. Be the first to ask a question about this product.
Reviews
Related products
Pyrexx PX-AR Alarm Control Relay For External Applications
Original price was: AED 1,575.00.AED 1,365.00Current price is: AED 1,365.00. VAT included

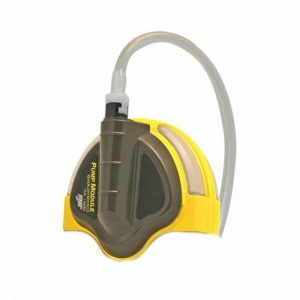

BW Technologies M5-PR-1 Replacement Pump For Gas Alert Micro 5
