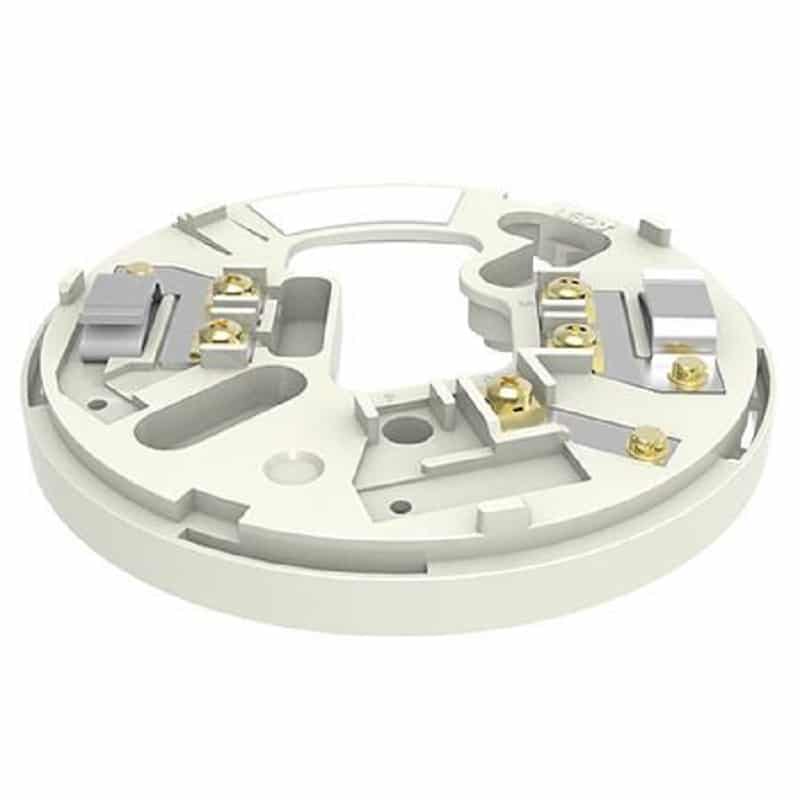

Hochiki YBN-R/3 Analogue Common Detector Base
See all products from hochikiAED 14.70 VAT included
Hochiki YBN-R/3 Analogue Fire Detector Base is a common mounting base, which is fully compatible with Hochiki’s ESP range of sensors. is a Marine Approved Common Mounting Base, which is fully compatible with Hochikis ESP range of marine approved sensors. is a Marine Approved Common Mounting Base, which is fully compatible with Hochikis ESP range of marine approved sensors is a Marine App.
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Hochiki YBN-R/3 Analogue Fire Detector Base is a common mounting base, which is fully compatible with Hochiki’s ESP range of sensors. is a Marine Approved Common Mounting Base, which is fully compatible with Hochikis ESP range of marine approved sensors. is a Marine Approved Common Mounting Base, which is fully compatible with Hochikis ESP range of marine approved sensors is a Marine App.
The YBN-R/3 is supplied with square cable clamps for secure and reliable cable termination and is also capable of driving a remote LED if required.
Features
- Electronics free
- Stainless steel contacts
- takes 2.5mm2 cables
- Slim profile - only 8mm
- Rugged wiring contacts
- Facility for remote indicator
- Quick connection via square cable clamps
Specifications
- Operating Voltage: 17 - 41 V dc (24 V dc nominal)
- Standby current: 60 µA
- Current drawn by isolator during fault condition: < 4 mA
- Maximum current consumption from remote LED: 10 mA (limited by attached sensor)
- Maximum continuous current: 1 A
- Maximum quantity per loop: 128
- Ambient temperature range: -10 C to +50 C
- Relative humidity: 10% to 95% RH (at 40?C)
- Colour and case material: Ivory or White ABS
- Fixing centres: 48 mm through to 74 mm
- Maximum wire thickness: 2.5 mm²/terminal
- Dimensions (mm): 100 (diameter) x 13.7 (height)
- Weight (g): 80
