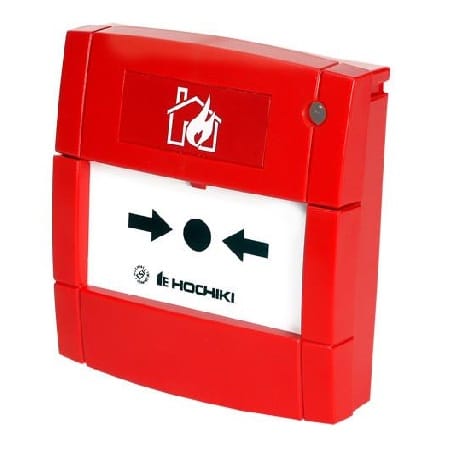

Hochiki HHCP-E(SCI) Addressable Call Point with SCI (RED)

Name: Hochiki HHCP-E(SCI) Addressable Call Point with SCI (RED)
SKU: fs107036
Availability: InStock

See all products from hochiki

AED 252.00 VAT included

Model HCP-E(SCI) is a Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol. The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing for communications polling and is continuously lit when the HCP-E(SCI) is operated in these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated.

The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt. A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit.

In stock

Compare

Product Code : fs107036 Brand: Hochiki Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Model HCP-E(SCI) is a Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol. The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing for communications polling and is continuously lit when the HCP-E(SCI) is operated – in these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated.

The unit is addressed using the TCH-B200 Hand Held Programmer for quick and reliable addressing.

Features

Fast response
Integral short-circuit isolator
Bi-coloured status LED
Non-frangible element fitted as standard (conforms to EN54)
Addressed with TCH-B200 Hand Held Programmer
Surface or flush mounting (if surface mounting, requires SR MOUNTING BOX, sold separately)
Different colour options available
LPCB Approved to EN54

Specifications

Back Box Ordering Code: SR MOUNTING BOX (required for surface fixing - sold separately)
Operating Voltage: 17 - 41 VDC
Low Power Mode: 180 µA (max), 100 µA (typ)
Quiescent Current: 350 µA (max), 250 µA (typ)
Alarm Current: 10.0 mA (max), 5 mA (typ)
Resistance in positive: 100 m? when closed (max), 100 k? when open (min)
Short-circuit threshold (typ): 430 ?
Transmission Method: Digital Communication Using ESP
Operating Temperature Range: -10 °C to + 50 °C
Storage Temperature Range: -30 °C to + 70 °C
Maximum Humidity: 95%RH - Non Condensing (at 40 °C)
Ingress Protection Rating: IP24
Colour / Case Material: Red / Modified Polyphenylene Oxide
Weight (g) / Dimensions (mm): (Flush Unit) 110 / W89 x H93 x D27.5; (With Surface Mount Back Box) 161 / W89 x H93 xD59.5)
