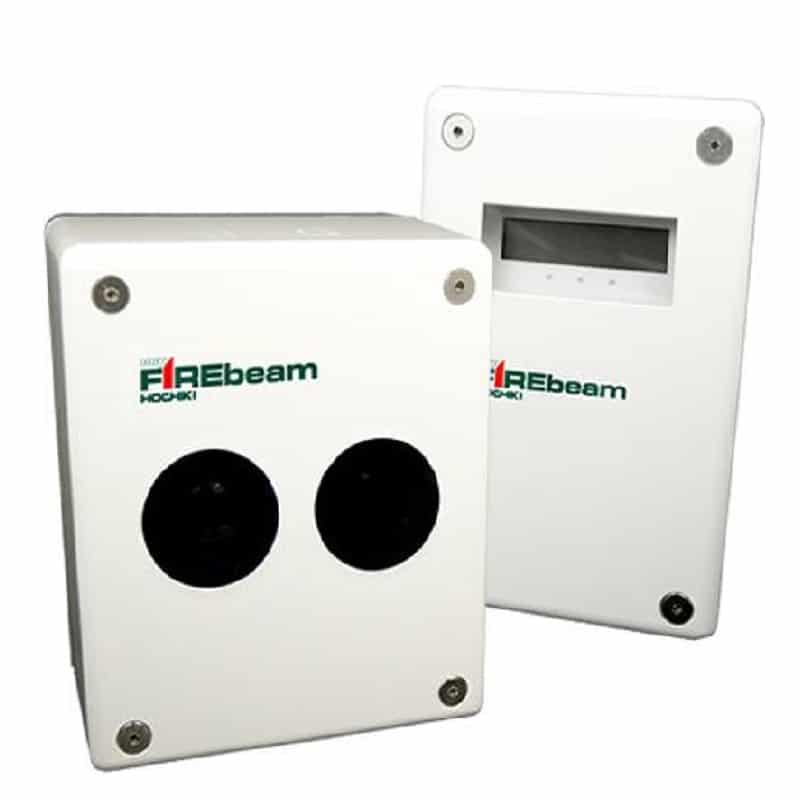

Hochiki FB-1 Firebeam Detector with Low Level Controller and 5-40M Reflector

Name: Hochiki FB-1 Firebeam Detector with Low Level Controller and 5-40M Reflector
SKU: fs107029
Availability: InStock

See all products from hochiki

AED 2,127.30 VAT included

Hochiki FB-1 (FIREbeam) Analogue Addressable Beam Smoke Detector is a reflective beam Smoke Detector which features advanced motorised technology allowing it to self-align itself to the centre of the reflector when commissioning. Commissioning is a semi-automatic procedure where the unit aligns itself directly onto the centre of the reflector. Once commissioned the detector continually monitors alignment and will automatically realign itself back to the centre of the reflector if any building movement occurs. The detector comes with a separate controller unit which allows engineers to commission, monitor and maintain from ground level.

Compare

Product Code : fs107029 Brand: Hochiki Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Hochiki FB-1 (FIREbeam) Analogue Addressable Beam Smoke Detector is a reflective beam Smoke Detector which features advanced motorised technology allowing it to self-align itself to the centre of the reflector when commissioning. Commissioning is a semi-automatic procedure where the unit aligns itself directly onto the centre of the reflector. Once commissioned the detector continually monitors alignment and will automatically realign itself back to the centre of the reflector if any building movement occurs.
The detector comes with a separate controller unit which allows engineers to commission, monitor and maintain from ground level. Detection range is 40 m for the standard unit, increasing to 80 m or 100 m with the addition of the medium or long-range reflector kits.
The FB-1 features an integral loop module allowing full connectivity to the ESP analogue addressable loop.

Features

Continually corrects itself against building movement
Controlled and adjusted from ground level utilising included controller
5 40 m standard detection range
Extensions kits available to enhance detection range up to 100 m
Fully compatible with the Hochiki ESP analogue addressable protocol

Specifications

Supply Voltage: 17 to 41 V dc
Supply Current: 3 mA (constant current) in all operational states
Constant Current: 17 mA (constant current) in fast commissioning
Operating Temperature Range: -10 °C to +55 °C
Operating Humidity: 10 to 95% RH Non-condensing
Ingress Protection Rating: IP65 (when suitably mounted and terminated)
Optical Wavelength: 870 nm
Maximum Angular Alignment: ±5°
Maximum Angular Misalignment: Beam Head ±0.3 °, Reflector ±2 ° (static not auto-aligning)
Alarm Sensitivity Levels: 25%(1.25 dB) to 50%(3 dB) in 1%(0.05 dB), increments (default 35% (1.87 dB))
Weight (Kg) / Dimensions (mm): Detector-1.1 / 180H x 155W x137D, Controller 0.55 / 185H x 120W x 62D
