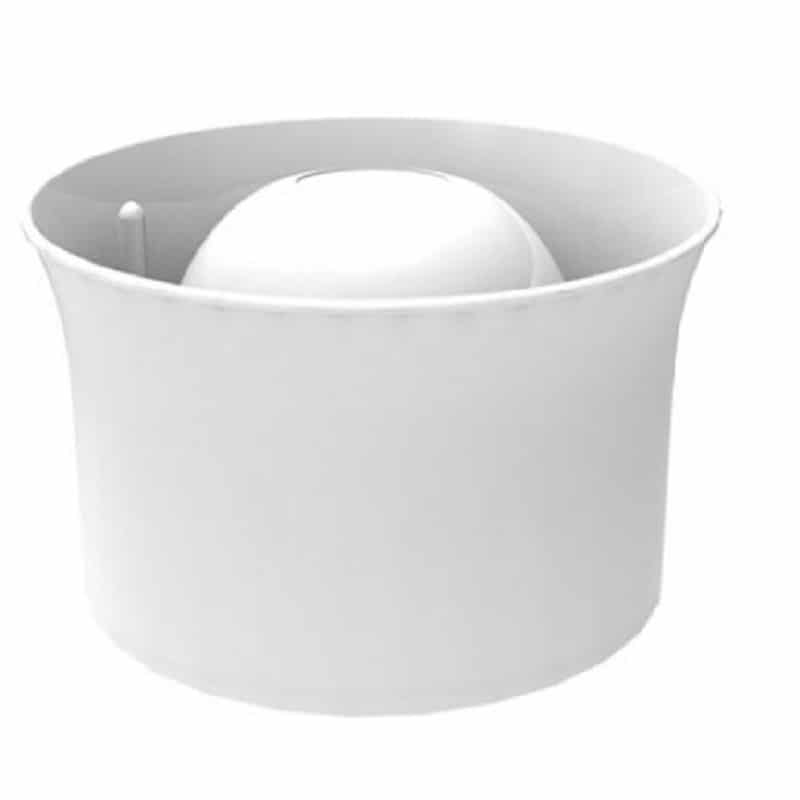

Hochiki CHQ-WS2(WHT) Wall Sounder – White Case

Name: Hochiki CHQ-WS2(WHT) Wall Sounder - White Case
SKU: fs107023-1
Availability: InStock

See all products from hochiki

AED 175.88 VAT included

Model CHQ-WS2(WHT) is an addressable loop powered Wall Sounder innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption.

The unit is designed to fit to the Standard Base (YBO-R/3(WHT)) or the Isolator Base (YBO-R/SCI(WHT/SNDR)). The sounder is IP rated to IP21 for internal use but it can be made weatherproof by utilizing the CHQ-WPK(WHT) Weatherproof Kit, which consists of a specialized back box and gasket set.

In stock

Compare

Product Code : fs107023-1 Brand: Hochiki Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Also incorporates an auto shutdown mode which allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, ideal for minimizing noise pollution. Dependent on control panel compatibility.

Features

Loop Powered
Single Loop Address - addressed via the TCH-B200 Hand Held Programmer
Variable Sound Output 90 ~ 102 dB(A) (+/-2 dB(A)) output at 1 metre
Fits Hochiki Standard or Isolator Base
Weatherproof Kit available
51 User-Selectable Tones (all tones EN54-3 compatible)
Also available in red
Approved by LPCB and VdS

Specifications

Operating Voltage: 17 ~ 41 VDC
Quiescent Current (typ): 150 µA (with YBO-R/3(RED)); 200 µA (with YBO-R/SCI(RED))
Sounding Current (typ): 2 mA (90 dB(A) (±2 dB(A)) @ 1 m) ~; 8 mA (102 dB(A) (±2 dB(A)) @ 1 m)
Sound Output (at 1 metre): 90 ~ 102 dB(A) (±2 dB(A)) @ 24 VDC or above
Number of Tones: 51
Tone Frequency Range: 300 Hz ~ 2850 Hz
Operating Temperature Range: -10 °C to +50 °C
Storage Temperature Range: -30 °C to +70 °C
Maximum Humidity: 95% RH - Non Condensing (at 40 °C)
Colour/Case Material: Red or White/ PC ABS
Ingress Protection Rating: IP21 (IP65 with WS2-WPK)
Weight (g)/Dimensions (mm): 152 / H112 x W112 x D67
Base Fixing Centres (mm): 48 ~ 74
