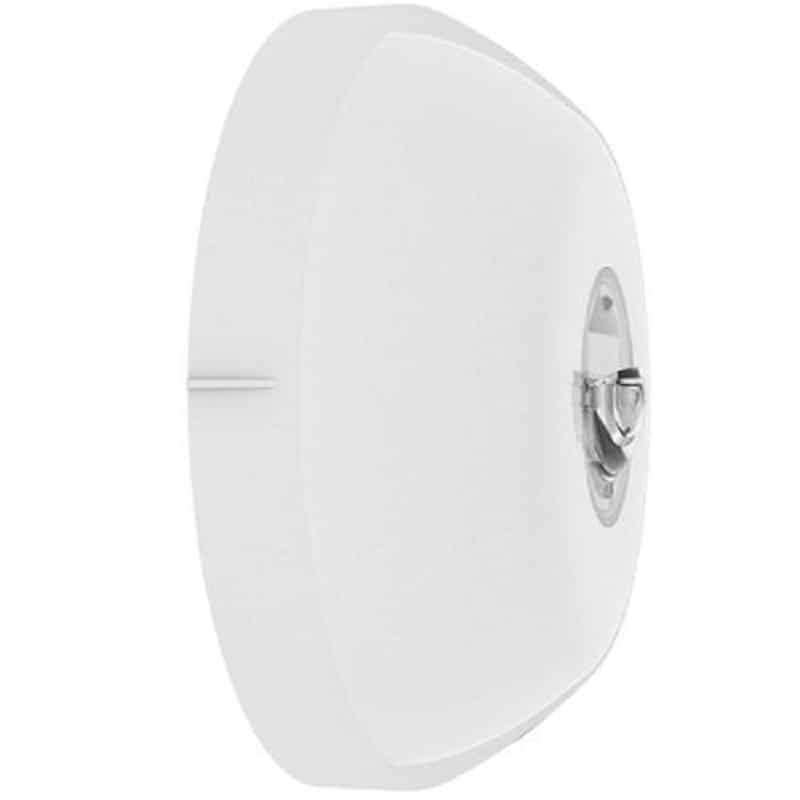

Hochiki CHQ-WB(WHT)/RL Wall Beacon – White Case, Red Leds

Name: Hochiki CHQ-WB(WHT)/RL Wall Beacon - White Case, Red Leds
SKU: fs107020
Availability: InStock

See all products from hochiki

AED 252.00 VAT included

In stock

Compare

Product Code : fs107020 Brand: Hochiki Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

An Addressable Loop-Powered Wall Beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Various coverage volumes available based on 2.4m ceiling height, include 5m, 6m and 7m. The unit is designed to fit the YBN-R/3 and YBN-R/3(SCI) bases or the YBO-BS Base Sounder. This model features a white case and red LEDs. Selectable from the CIE (check panel compatibility).

Features

EN54-23 compliant
Loop powered
High intensity flash
Range of coverage volumes
Red LEDs
Colour-matched with existing sensor range
0.5/1 Hz flash frequency

Specifications

Operating Voltage: 17 ~ 41 V dc
Quiescent Current (typ): 250 µA
Operating Temperature Range: -10 °C to +50 °C
Storage Temperature Range: -30 °C to +70 °C
Maximum Humidity: 95% RH - Non Condensing (at 40 °C)
Colour/Case Material: Red, White or Ivory / PC+ABS
Lens Material: PC
Ingress Protection Rating: IP21 (IP33 when used inconjunction with CHQ-WPK Weatherproofing Kit)
Weight (g)/Dimensions (mm): 120 / D100 x H41
Base Fixing Centres (mm): 48 ~ 74
