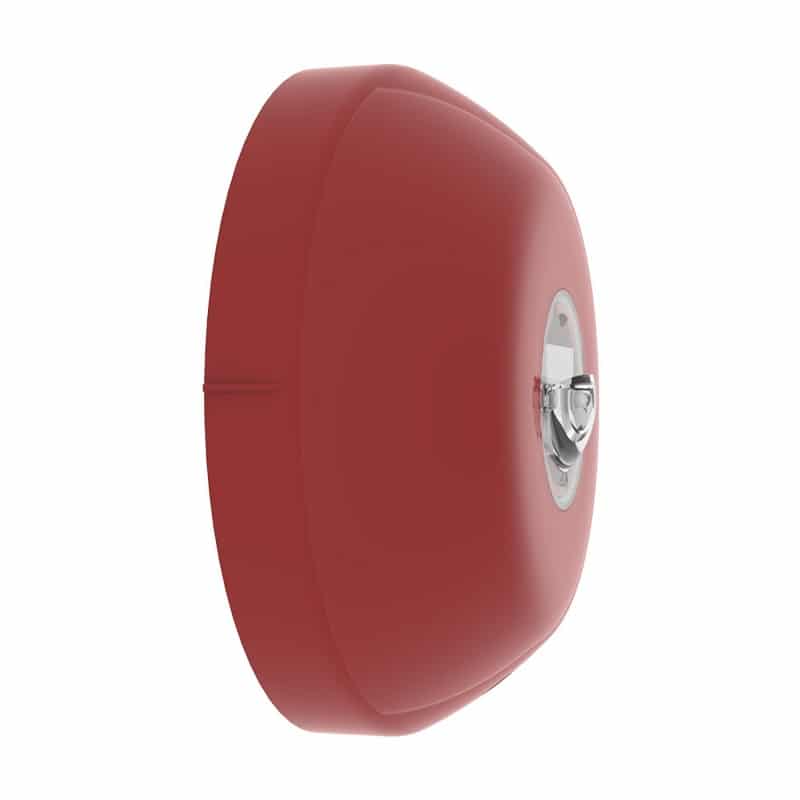

Hochiki CHQ-WB(RED)/RL Wall Beacon – Red Case, Red Leds
See all products from hochikiAED 252.00 VAT included
An Addressable Loop-Powered Wall Beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Various coverage volumes available based on 2.4m ceiling height, include 5m, 6m and 7m.
In stock
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
An Addressable Loop-Powered Wall Beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Various coverage volumes available based on 2.4m ceiling height, include 5m, 6m and 7m. The unit is designed to fit the YBO-R/3(RED) and YBO-R/SCI(RED) bases. This model features a red case and red LEDs. Selectable from the CIE (check panel compatibility).
Features
- EN54-23 compliant
- Loop powered
- High intensity flash
- Range of coverage volumes
- Red LEDs
- Colour-matched with existing sensor range
Specifications
- Operating Voltage: 17 ~ 41 V dc
- Quiescent Current (typ): 250 µA
- Operating Temperature Range: -10 °C to +50 °C
- Storage Temperature Range: -30 °C to +70 °C
- Maximum Humidity: 95% RH - Non Condensing (at 40 °C)
- Colour/Case Material: Red, White or Ivory / PC+ABS
- Lens Material: PC
- Ingress Protection Rating: IP21 (IP33 when used inconjunction with CHQ-WPK Weatherproofing Kit)
- Weight (g)/Dimensions (mm): 120 / D100 x H41
- Base Fixing Centres (mm): 48 ~ 74
