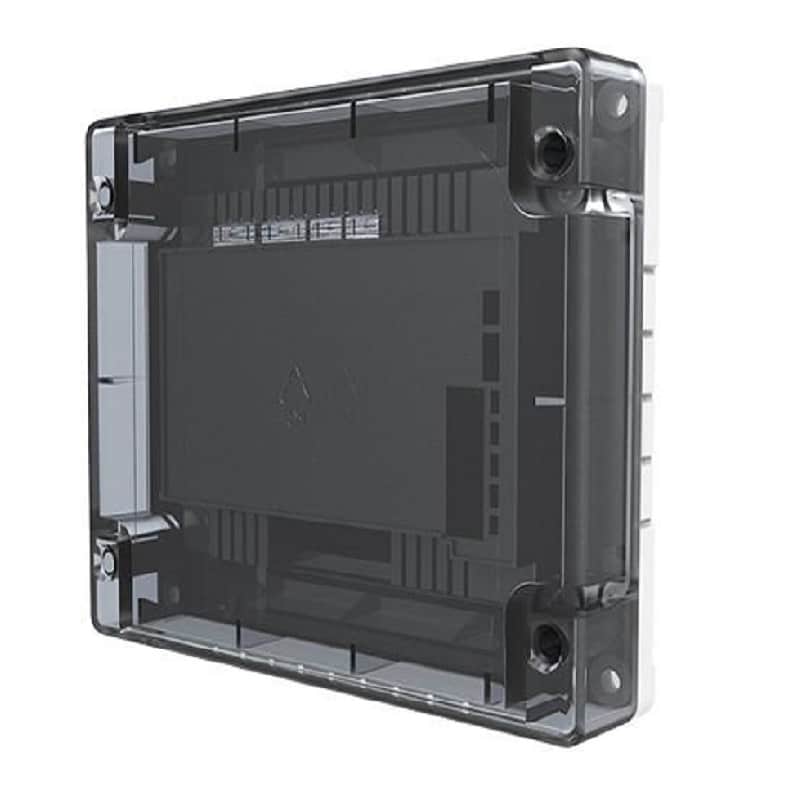

Hochiki CHQ-DSC2(SCI) Dual Sounder Controller with SCI
See all products from hochikiAED 371.70 VAT included
Model CHQ-DSC2(SCI) is a Dual Sounder Controller, which has been designed to provide two sounder outputs (that can be driven separately) with full fault monitoring.
In stock
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Model CHQ-DSC2(SCI) is a Dual Sounder Controller, which has been designed to provide two sounder outputs (that can be driven separately) with full fault monitoring. The monitored input can be used for local power supply fault monitoring or as a general-purpose input. The unit utilises simple DIL switches for reliable addressing. A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-DSC2(SCI), increases the IP rating to IP65.
Features
- Single loop address
- Two independent sounder circuits
- Each circuit fully monitored for open and short circuit faults
- Each alarm circuit fused at 1 A
- Auxiliary monitored input
- Outputs are synchronized and can be driven continuously or intermittently
- 24 V dc auxiliary power required
- DIN rail version available
- Both models feature an integral short-circuit isolator
- Both models approved by LPCB and VdS
Specifications
- Brand: Hochiki
- Operating voltage: 17 - 41 V dc
- Quiescent current: (typ)*1 350 ?A
- Current consumption: 22 mA ? 20 % (polling)
- Current in short-circuit: 8 mA
- Maximum short-circuit current (Loop): 1 A
- External supply voltage: 20-28.8 VDC (24 VDC nominal)
- Current consumption (per bell circuit) Sounder on: - 8 mA, Sounder fault - 6 mA
- Sounder output current 1 A/line (max) fused: @ 1.25 A
- Sounder line capacitance: 0.3 µF/line (max/line)
- Sounder E.O.L. resistor: 1 k?, ±5%, 2 W
- Input E.O.L. resistor: 10 k?, ±5%, 0.25 W
- Input threshold levels: ON=470 ?, short cct<50 ?, open cct>100 K?
- Operating temperature range: -10 °C to + 50 °C
- Storage temperature range: -30 °C to + 60 °C
