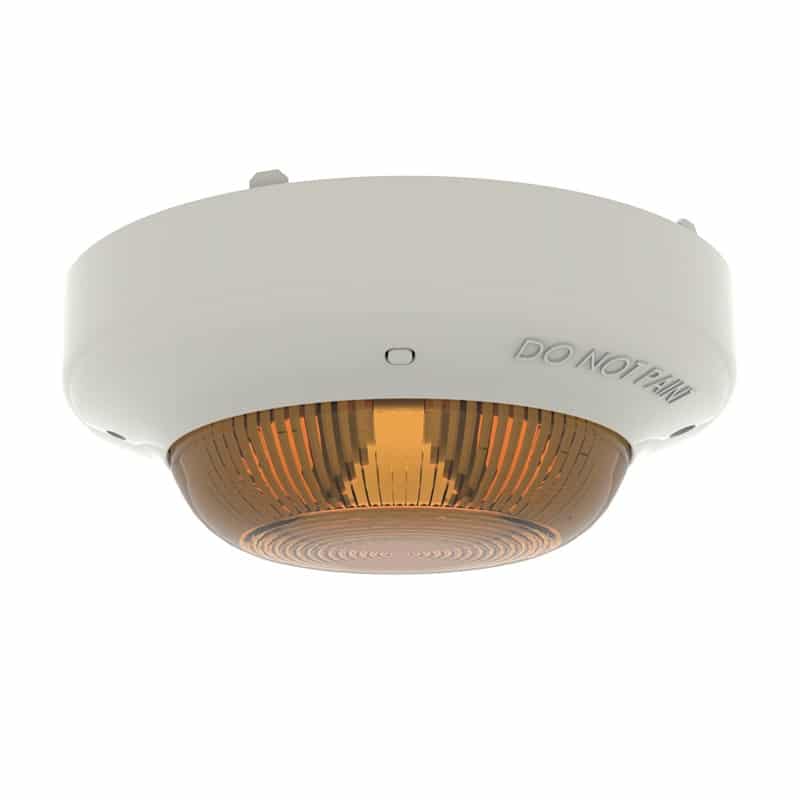

Hochiki CHQ-AB(AMB)WHT Addressable Beacon – White Case, Amber Lens (Non EN54-23 Compliant)
See all products from hochikiAED 176.40 VAT included
Hochiki CHQ-AB(AMB)WHT Loop Powered Addressable Beacon (RED) consists of addressable loop-powered Beacons, with high-intensity LEDs and a Fresnel lens design which produces a highly visible flash. The casings exactly match the Hochiki ESP Sensor range in shape and colour providing seamless integration.
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Hochiki CHQ-AB(AMB)WHT range consists of addressable loop-powered Beacons, with high-intensity LEDs and a Fresnel lens design which produces a highly visible flash. The casings exactly match the Hochiki ESP Sensor range in shape and colour providing seamless integration. The units can be used on the Standard ESP Base (YBN-R/3), the Base Sounders (CHQBS or YBO-BS), the Base Sounder Beacon (YBO-BSB) or the Short-Circuit Isolator Base (YBO-R/SCI).
Features
- High Intensity LED technology
- Variable flash frequency
- Addressable via Hand Held Programmer (TCH-B100)
- Up to 127 devices per loop
- Choice of 3 lens colours (red, amber and blue)
- Approved by VdS
Specifications
- Operating Voltage: 17 - 41Vd.c
- Quiescent Current (typ): 240µA (300µA max)
- Loop current (when polled): 22mA ±20%
- Alarm Current (typ): 4.3mA (5.0mA max)
- Operating Temperature Range: -10C to + 50C
- Storage Temperature Range: -30C to + 60C
- Maximum Humidity: 95%RH - Non Condensing (at 40?C)
- Colour / Case Material: Ivory or White / ABS
- Casing & Lens Colour Variations: Ivory Casing / Transparent Amber Lens
- Weight (g): 91
- Diameter (mm) / Height (mm): 100 / 38 (46 with base)
- Base Fixing Centres (mm): 48 ~ 77
- Approvals: VdS (G206052)
