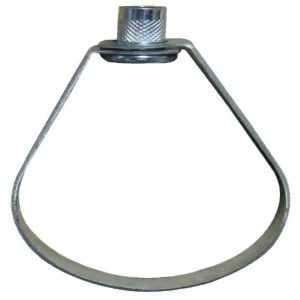

    • Swivel Loop Pipe Hanger, Pre-Galvanized Steel, 1.2 x 16mm AED 1.58 – AED 2.10Price range: AED 1.58 through AED 2.10 VAT included
    • 3 Inch Type D Camlock Fitting - Brass AED 105.00 VAT included

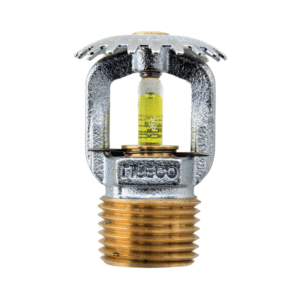

    • SPRINKLER UPRIGHT 1/2", 68D, K FACTOR 5.6, S/R, LF310, LIFECO AED 25.20 VAT included
    • rapidrop-rd023-ssp-pendant-quick-response-sprinkler-chrome-finish-68c Rapidrop RD023 SSP Pendant Quick Response Sprinkler, Chrome Finish, 68’C AED 26.25 VAT included

  • Safety GearsSafety Gears
    • SAFETY GEAR
      • Eye Protection
      • Ear Protection
      • Face Protection
      • Head Protection
      • Respiratory Protection
      • Hand Protection
      • Foot Protection
      • Fall Protection
      • Body Protection
    • Other Safety Items
      • Disposable Coveralls
      • Flashlights
      • Electrical Safety Gear
      • Filters & Cartridges
      • Shower & Eyewashes
      • Powered Air Purifying Respirators
      • Chemical & Liquid Protection
      • Marine Safety Gear
    Best Brands
    • yellow impactorifullbrim Canasafe iMPactor I Full Brim Twizloc Yellow AED 44.45 VAT included
    • white 3mh701r 3M Hard Hat 4-Point Ratchet Suspension AED 56.97 VAT included
    • 3M H700 Hard Hat Ratchet Suspension - Red AED 56.97 VAT included
  • OthersOthers

    • Spare Parts Accessories
      • Notification Devices
      • Panel Parts
      • Batteries for Fire Panels
    • Lockout & Tagout
      • Safety Lockout Padlocks
      • Lockout Key Cabinets
      • Electrical Lockouts
    • Cables
      • Fire Rated Cables
      • Speakers & Speaker Flashers
      • Abort & Disable Switches
      • Fire Doors
      • Manual Call Point
    • Control Panels
      • Conventional Panels
      • Addressable Fire Alarm Panels
      • Release Panels
      • Gas Detection Panels
      • Repeater Panels
    • Signage's & Label Sticker's
      • Fire Signs
      • Prohibition Signs
      • Safety Signs
      • Warning Signs
    • Oil Absorbents & Spill Kits
    SPECIAL PRICES
    • Fireblitz FBB120-HP 1.2m x 1.2m Fire Blanket AED 57.75 VAT included
    • nuova-rade-water-tank-70lt-700x400x260mm Nuova Rade Fresh Water Tank 70lt 700x400x260mm AED 389.90 VAT included
    • Mobiak MBK03-P3 Filter Suitable for Dust, Humidity, Smoke, Aerosol AED 64.05 VAT included

  • WirelessWireless
    • Wireless Devices
      • Wireless Detectors
      • Wireless Detection With Panel
      • Wireless Detection Without Panel
    Wireless Solutions
    • wireless smoke alarms Firehawk FH700HIA Smoke or Heat Alarm For Deaf(Hearing Impaired) AED 262.50 VAT included
    • ROYAL_TV_1000 Elotec ROYAL TV 1000 Wireless Heat Detector AED 787.50 VAT included
    • ROYAL_TV_2030 Elotec ROYAL TV 2030+ Wireless Heat Detector AED 1,575.00 VAT included
HomeDetectors & InstrumentsDetectors Hochiki ALN-EN Addressable Optical Smoke Detector
Previous product
Fike Sita 205 0003 Multipoint  Asd Detector
Fike Sita 205 0003 Multipoint Asd Detector AED 259.35 VAT included
Back to products
Next product
Hochiki CHQ-AB(AMB) Addressable Beacon- Ivory Case,
Hochiki CHQ-AB(AMB)WHT Addressable Beacon - White Case, Amber Lens (Non EN54-23 Compliant) AED 176.40 VAT included
Hochiki ALN-EN Addressable Optical Smoke Detector
Click to enlarge
Share
Facebook Twitter Pinterest linkedin Telegram

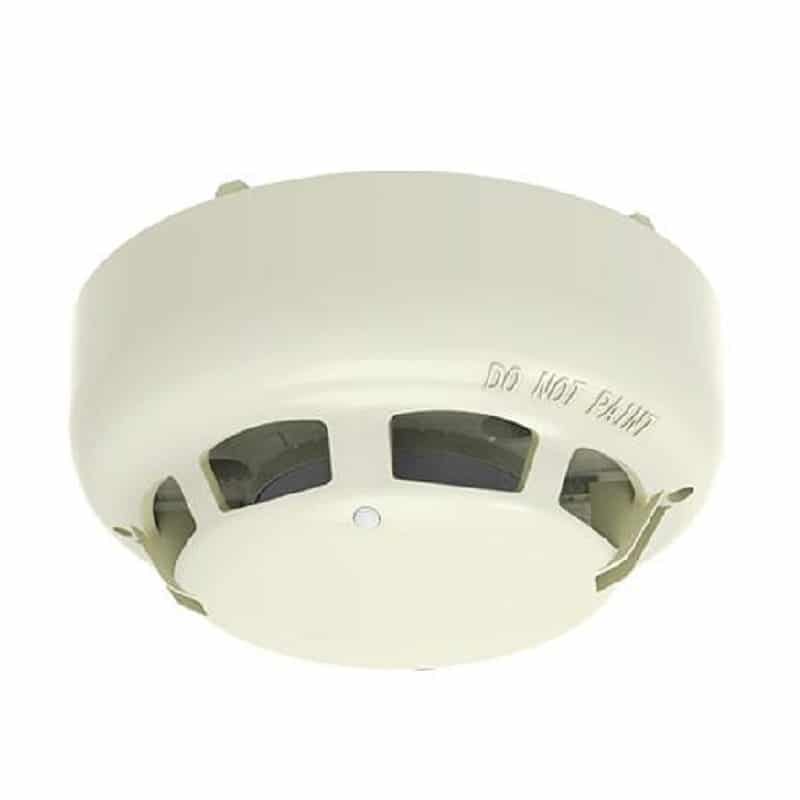

Hochiki ALN-EN Addressable Optical Smoke Detector

hochiki See all products from hochiki

AED 224.18 VAT included

Hochiki ALN-EN Photo Electric Smoke Sensor (Ivory) is a Photoelectric Smoke Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol. The ALN-EN incorporates Hochiki’s newest High Performance Chamber Technology removing the need to use Ionisation Smoke Sensors in the majority of applications. This also allows the sensor threshold level to be increased, thereby improving the signal to noise ratio and reducing susceptibility to false alarms.

Build Enquiry List
This product is already in quote request list
Browse the list
Compare
Product Code : fs108476 Brand: Hochiki Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]
  • free delivery

    Above AED1000 in Dubai

  • WARRANTY

    For 365 days

  • always authentic

    Only Reputed Brands

  • EASY PAYMENT

    Multiple payment options

Description

Hochiki ALN-EN Photo Electric Smoke Sensor (Ivory) is a Photoelectric Smoke Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol. The ALN-EN incorporates Hochiki’s newest High Performance Chamber Technology removing the need to use Ionisation Smoke Sensors in the majority of applications. This also allows the sensor threshold level to be increased, thereby improving the signal to noise ratio and reducing susceptibility to false alarms. The ALN-EN smoke chamber is easily removed or replaced for cleaning and utilises a unique improved baffle design which allows smoke to enter the chamber whilst keeping out ambient light.

Features

  • Removable, High Performance chamber
  • Twin LEDs allow 360 viewing – green when polling, turn red in fire
  • Locking mechanism (sensor to base)
  • Variable sensitivity
  • Variable sensitivity
  • Pulsing/non-pulsing controlled from panel
  • Approved by LPCB & VdS
  • SIL Level 2 approved variants available
  • Available in white

Specifications

  • Operating Voltage: 17 – 41 VDC
  • Low Power Mode (typ): 120 µA
  • Quiescent Current (typ): 400 µA
  • Alarm Current (controlled by CIE): 9.1 mA (excluding remote indicator
  • Current in Short Circuit: 13.5mA
  • Transmission Method: Digital Communications Using ESP
  • Operating Temperature Range: -10 °C to + 50 °C
  • Operating Humidity: 95% RH - Non Condensing (at 40 °C)
  • Storage Temperature Range: -30 °C to +60 °C
  • Storage Humidity: <80% RH at 60 °C
  • Colour / Case Material: Ivory or White / ABS
  • Weight (g): 95
  • Diameter (mm) / Height (mm): 100 / 45
  • Base Fixing Centres (mm): 48 ~ 74
  • Compatible Bases: YBV-R/4
