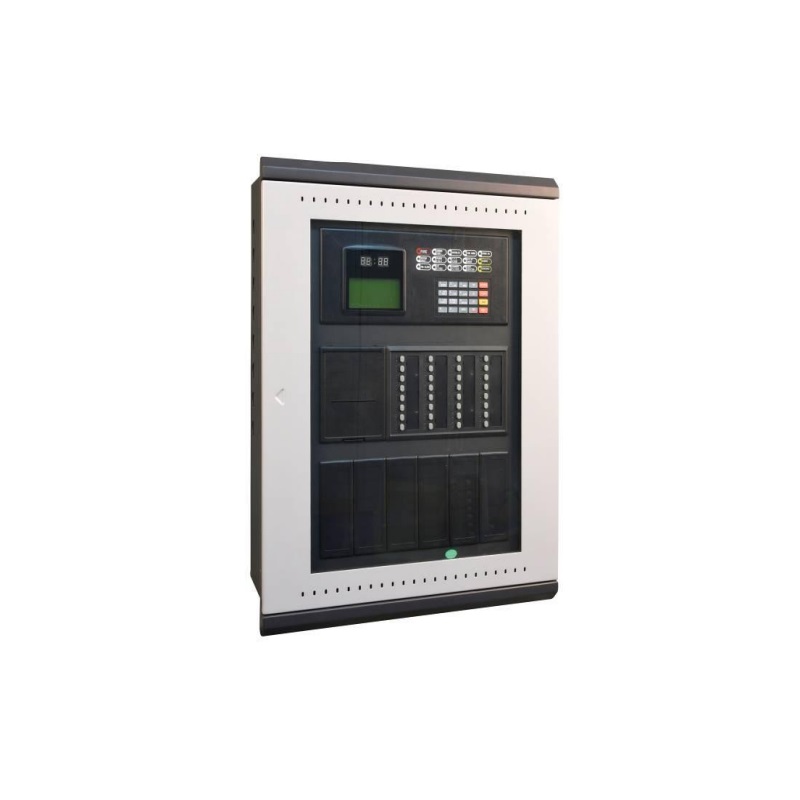

GST200-2 Intelligent Fire Alarm Control Panel, 2 loop with P-9940A Class A RS485 Network Card

Name: GST200-2 Intelligent Fire Alarm Control Panel, 2 loop with P-9940A Class A RS485 Network Card
SKU: fs05022524
Availability: InStock

See all products from gst

AED 6,048.00 VAT included

Fire Projects has supply, install and test and commission GST 200-2 single loop and two loop addressable fire detection control panel with up to 242 devices per loop, the system is packed with features that are not usually associated with smaller and medium systems. The GST 200-2 provides a high quality solution at exceptional value. By utilizing advanced GST Protocol, the system is compatible with the complete range of GST intelligent Detectors, Sounders, Call Points, Interfaces, including gas extinguishing controls. Networkable with all GST intelligent fire control panels the system can be expanded up to a maximum of 240 GST panels (over 48,000 devices).

Compare

Product Code : fs05022524 Brand: GST Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

GST200-2 Intelligent Fire Alarm Control Panel, 2 loop with P-9940A Class A RS485 Network Card addressable fire detection control panel with up to 242 devices per loop, the system is packed with features that are not usually associated with smaller and medium systems. The GST 200-2 provides a high-quality solution at an exceptional value. By utilizing advanced GST Protocol, the system is compatible with the complete range of GST intelligent Detectors, Sounders, Call Points, Interfaces, including gas extinguishing controls. Networkable with all GST intelligent fire control panels the system can be expanded up to a maximum of 240 GST panels (over 48,000 devices).

Features

Non-Volatile memory ensures the data does not loss even if power supply is accidentally removed
Sounder strobe output provides 0.5A/24V load, compatible with GST conventional sounders
Max. 30 zones. Each zone has its own alarm and fault/disable indicator and a label
Compatible with GST intelligent and digital products
RS232 interface enables communication with PC
Optioanl expaned to 2 loops, 477 loop devices
RS485 or CAN interface enables networking
15 LEDs to display important information
Capacity 236 addressable devices
8X18 characters LCD screen

Specifications

Standard: EN54 Part 2/4 ; BS5839 Part 4
Approvals: LPCB, CPD
Main Input Voltage: 220/230 ± 10% VAC 50/60 Hz
Input Current Rating: 0.500A, Fuse: 2A delay
Operating Temperature: 0°C- 40°C /95% relative humidity
Protection: IP 30
Application: Indoor installation
Programming: Laptop using GST Defining Software/P-9930
Zone Capacity: 30 Zones programmable
Loop Parameter: loop expandable to 2 with LC200 card
Loop Capacity: 477; Loop 1:235; loop 2:242(Address)
Loop Topology: Class A or B
Loop Voltage: 24 VDC Nominal (21-27 VDC)
Loop Current: 0-300mA
Loop Length/Cable: 1.00mm²-800m-Full Load; Output Circuits: 1.5mm²-1000 m-Full Load; Dimension (HLW): Outer: 580 x 420 x 30 mm, Inner: 550 x 393 x 173 mm
