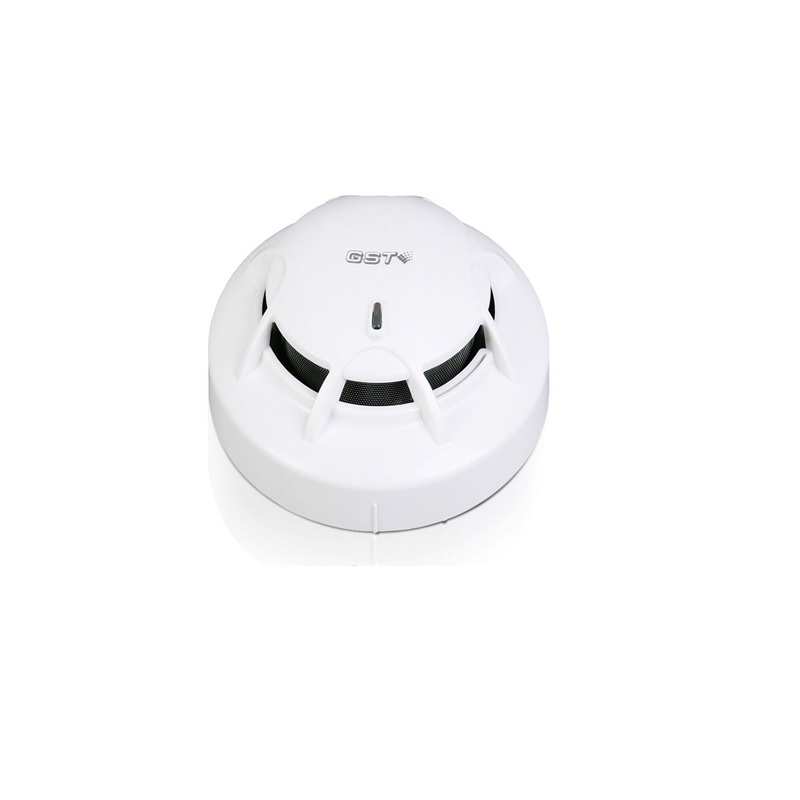

GST I-9101 Intelligent Heat/Photoelectric Smoke Detector

Name: GST I-9101 Intelligent Heat/Photoelectric Smoke Detector
SKU: fs05022054
Availability: InStock

AED 315.00 VAT included

Compare

Product Code : fs05022054 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

GST I-9101 Intelligent Heat/Photoelectric Smoke Detector consists of smoke sensing and
semi-conductor temperature sensing parts in processing and circuitry. This detector has the advantages of both the photoelectric detector and the rate of rise and fixed temperature heat detector. Just because of the combination technology of smoke detector and heat detector, it overcomes the non-sensitivity to dark smoke particles of ordinary scattering-type photoelectric detectors. It can also pick up the fire with the obvious rise of temperature such as alcohol fire, thus extending the application range.

Features

3 levels sensitivities programmable; Level 1 complies with EN 54-7. Fix temperature or rate of rise programmable, rate of rise mode complies with EN 54-5.
Integrated algorithm for analyzing fire, improving the sensitivity highly
Removable innovative sensing chamber, easy for maintenance
Drift compensation to suit environment changing extensively
Reporting dirt fault for contaminated chamber
Built-in MCU stores up to 14 history data
Remote indicator output available
Address programmable in field
Self-diagnostic

Specifications

Product: Heat/Photoelectric Smoke Detector
Brand: GST
Model: I-9101
Operating Voltage: Loop 24V (16V~28V)
Standby Current: ≤0.8mA
Alarm Current: ≤5.0mA
Alarm Indicator: Red (flashes in normal and illuminates in alarm)
Wiring: Polarity-insensitive 2-core for detection zone cable. Polarity-sensitive 2-core for remote indicator
Ingress Protection Rating: IP22
Dimensions: Diameter: 100mm Height: 56mm (with base)
