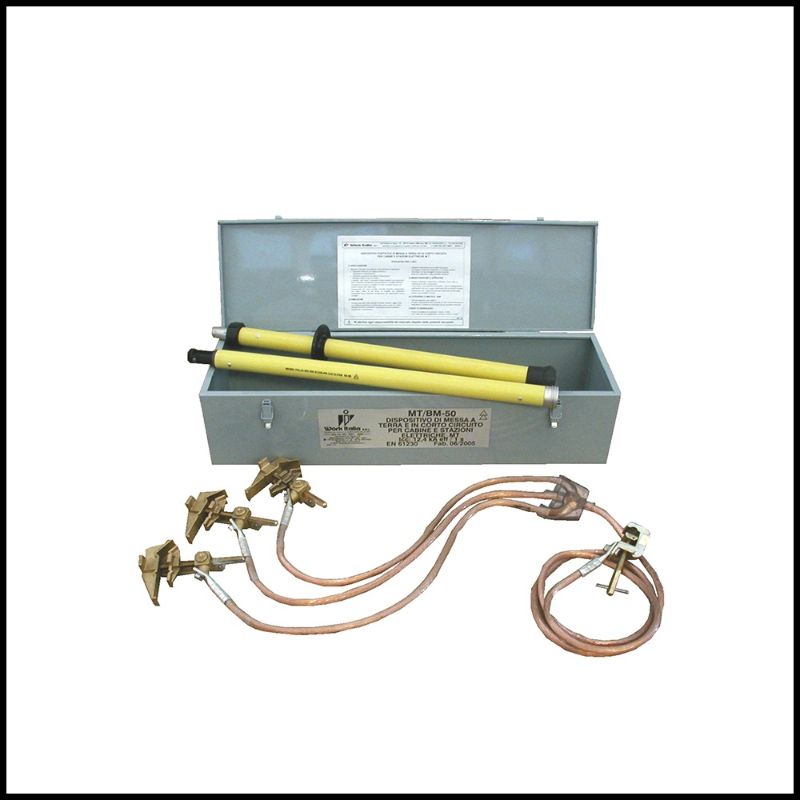

Generic – Earthing and Short Circuiting Kit 5 Mtrs, 50 sq.mm – MT-BM-50-5

nø3 Screw type universal contact clamps type PC/BM made by press forged brass tested for high intensity current and fitted with three different attack points for copper cable. Hexagonal tang made by galvanized steel. nø3 Extra flexible electrolytic copper cables of short circuit, covered by transparent, PVC or silicone sheath, for the connection between the three contact clamps and the central connector. Section (from 25 to 95 mmý) length 0,75 m complete, at the extremities, of tinning copper lugs and reinforcements by transparent heat-shrink sheath.

Central trifurcating connector. Ground electrolytic copper cable. Ground clamp made by press forged brass, clamping capacity up to 22 mm. Insulating fiberglass rod type PE2/135EF (or other length) made of epoxy resin reinforced by fiberglass in two elements connected between them by quick coupler. Comes with metallic carrying case. Clamping capacity on round conductor: 5-40mm (dia); Flat conductor: 40 x 60mm; Bars on horizontal level: 12 x 60mm; 45 degree slanting bars: up to 28mm thickness. Insulating Fiberglass Rod Length: 1.35 Mtrs. Cable Section: 50 sq.mm. Items Included: 3x Contact Clamp, 1x Copper Cable (5 Mtrs), 1x Insulated Fiberglass Rod (1.35 Mtrs).
