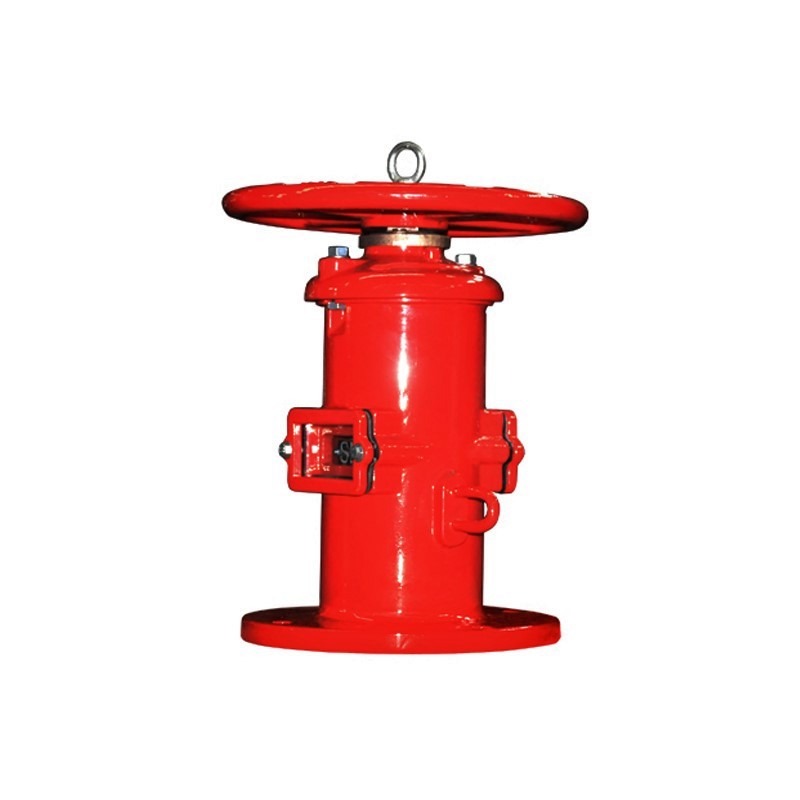

FWIC – Indicator Post Wall Type – ST-0166
AED 1,414.35 VAT included
FWIC – Indicator Post Wall Type – ST-0166
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Indicates if valve is in open or shut position. Used to operate a valve installed behind a wall, with a 12? OD post flange to mount on a wall. Operated by handwheel. Can be supplied to open left or right. Suitable for 4?-12? NRS Gate Valves. UL Listed and FM Approved.
Field Adjustment: Remove the top section from the top of the indicator post assembly. Set the? OPEN? and ? SHUT? targets for the appropriate valves size. Reattach the top section to the top of the indicator post assembly. Design and dimensions are subject to change without notice.
Features
- Indicates if valve is in open or shut position
- Operated by handwheel
- Can be supplied to open left or right
Specifications
- Brand: FWIC
- Model: ST-0166
- Size: 4 to 12 inch
- Material: Steel
- Certificate: UL & FM Approved
