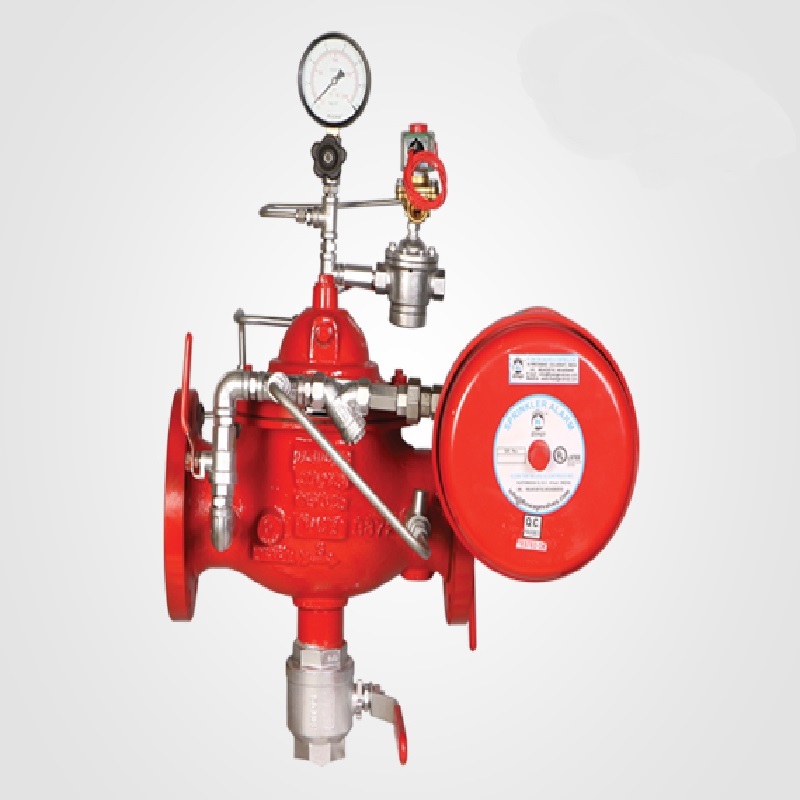

Flow-Tek FTV-ACV-100 – Straight Type Deluge Valve – 65 NB(2.5 inch)

Name: Flow-Tek FTV-ACV-100 - Straight Type Deluge Valve - 65 NB(2.5 inch)
SKU: fs107777
Availability: InStock

AED 6,037.50 VAT included

Compare

Product Code : fs107777 Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

FLOW TEK ACV FTV 100 DELUGE VALVE are intended to deliver large quantities of water over a large area in a relatively short period of time. The flow tek Deluge Valve is UL approved to 250 psi G. (17.5 bar) in sizes 2½ (65 MM ). The FLOW AGE deluge Valve is compact, lightweight, and is provided with a preassembled trim all of which minimize the installation time and make it simple and easy. The FLOW AGE Valve opens fast, yet smoothly, preventing water hammer. The FLOW AGE Valve design prevents false tripping and it can be reset by a thumb-activated knob.

Features

Deluge Valve Model FTV ACV-100
Fast application of water in spray, pre-action and foam system
Cast Steel ASTM A216 WCB construction
Maximum service pressure 17.5 bar ( 250 PSI)
Horizontal or Vertical installation TRIMS:- WET TRIM, DRY TRIM, ELECTRIC TRIM AVAILABLE
Diaphragm operated with rubber to metal drip-tight positive sealing
Easily trimmed for actuation by manual, remote solenoid valve & with wet or dry pilot
Internal and external surfaces epoxy coated for extra protection
Flanged connection dimensions to ANSI B 16.5
Service without removal from the line

Specifications

Product: Straight Type Deluge Valve
Brand: Flow-Tek
Model: FTV ACV-100
Mounting: Vertical or Horizontal
Flange Connection: ANSI B 16.5 #150 RF (FF-Optional)
Finish/Paint: RAL 3000(Red Color)/Fire Red IS Confirm to IS5 Shade 536 to IS 2932
service pressure: 17.5 bar ( 250 PSI)
Size: 65 mm (2.5?)- UL LISTED ( CERTIFIED)
Net Weight: 30 Kg
