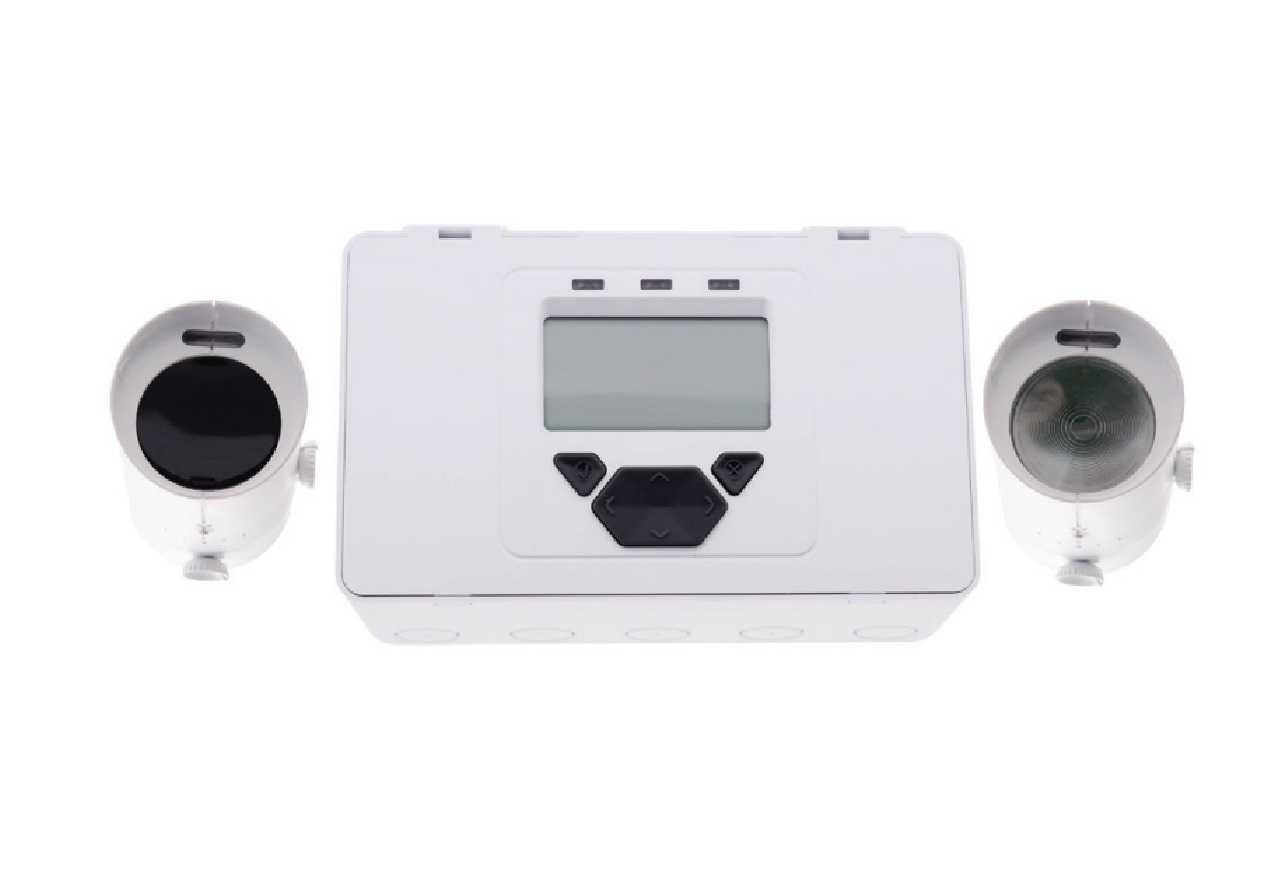

Fireray BDIR3000 Beam Detector Set 5 – 120M
See all products from ffeAED 8,400.00 VAT included
Fireray 3000 End to End Infrared Optical Beam Smoke Detector (OBSD) has been designed using the latest optical technology, incorporating modern industrial, electronic and software techniques. This detector offers cost effective protection of large, open area spaces with high ceilings. It is also very suited to applications where access to ceiling mounted smoke detectors presents practical difficulties.
Description
Fireray BDIR3000 Beam Detector has been designed using the latest optical technology, incorporating modern industrial, electronic and software techniques. This detector offers cost effective protection of large, open area spaces with high ceilings. It is also very suited to applications where access to ceiling mounted smoke detectors presents practical difficulties.
Features
- Range 5 to 120 metres, configurable per set of Detectors
- First Fix concept for Transmitter, Receiver and Controller
- Multiple cable gland knockouts for ease of wiring
- 2-wire Interface between Controller and Receiver
- Programmable Sensitivity and Fire/Fault delay
- Allows for 2 Detectors per System Controller
- Transmitter can be powered from Controller
- Low Level Controller with LCD display
- Integral Laser Alignment in Receiver
Specifications
- Product Type: Optical Beam Smoke Detector (OBSD)
- Operating Range: 5 to 120 m
- Operating Voltage Range: 12 to 36V DC ±10%
- Operating Controller Current (with 1 or 2 Receivers): 14mA (constant)
- Operating Transmitter Current: 8mA (per Transmitter)
- Optical Wavelength: 850nm
- IP Rating: IP54
- Housing Material Transmitter/Receiver/Controller): UL94 V2 PC
- Dimension & Weight Control Unit: 203 x 124 x 71.5mm (W x H x D) 606gms
- Dimension & Weight Transmitter & Receiver: 78 x 77 x 161mm (W x H x D) 207gms
- Maximum Cable Distance between Receiver & Controller: 330 Feet (100m)
Questions and answers of the customers
There are no questions yet. Be the first to ask a question about this product.
Reviews
Related products

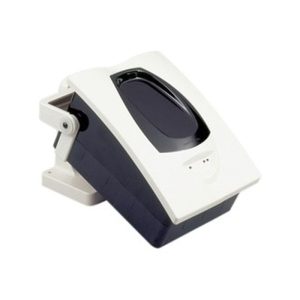

Honeywell – Addressable Optical Beam Detector Loop Powered – MI-LPB2-S3I
AED 2,673.37 VAT included
Shield Alpha 1000 Reflective Beam Detector-S-C1100 (50 m to 100 m)
AED 2,060.63 VAT included

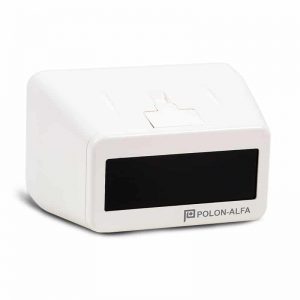

Polon Alfa Beam Smoke Detector DOP-6001/DOP-6001R
