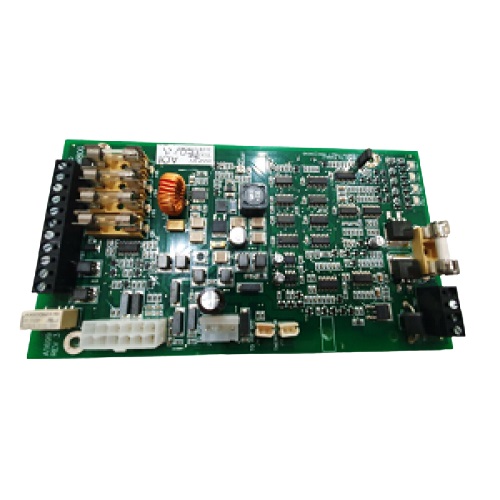

Fireclass PMM800 Power Monitor Module

Name: Fireclass PMM800 Power Monitor Module
SKU: fs05022442
Availability: InStock

AED 1,507.17 VAT included

Compare

Product Code : fs05022442 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Fireclass PMM800 Power Monitor Module is designed to fix studs on the top of the PSM800/820/821. The PMM 800 is a FireClass Addressable power supply monitoring module that is usually used with the PSM 800/820/821 power supply module to make an addressable power supply.

Features

FireClass addressable power supply monitoring module and is designed to fix to studs on the top of the PSM800/820/821
230 VAC mains supply is connected to the input of the power supply unit (BAQ60T24 or BAQ140T24)
The 28.6 VDC output from the power supply unit is fed to the input of the PMM800.
These are F1AL 250VAC 20x5mm fast blow glass fuses
The PMM800 provides four 24 V outputs
Each output is fitted with a fuse

Specifications

Product: Power Monitor Module
Brand: Fireclass
Model: PMM800
Mains Supply: 230 V AC, 50/60Hz. Input current 1.6 A. Input power 380 Watt maximum.
Output: Four “24 V outputs” (screw terminals). Range 21 to 28.6 V DC.
Output Capacity: 3.1 A continuous excluding battery charge current
Fuses: 24 V outputs fitted with 1 A fast blow 5 x 20 mm glass fuses.
Operating Temperature: -5 °C to +40 °C
Relative Humidity: 95% (non-condensing).
