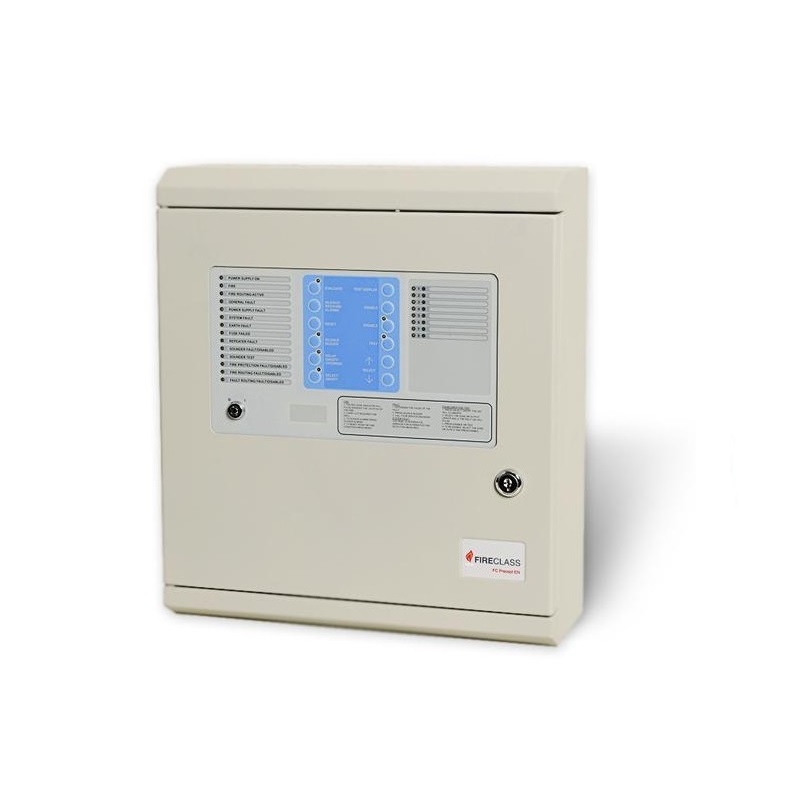

FireClass 508.032.710 Precept En 8 Zone DC Repeater

Name: FireClass 508.032.710 Precept En 8 Zone DC Repeater
SKU: fs1118239
Availability: InStock

See all products from fireclass

AED 1,362.90 VAT included

Compare

Product Code : fs1118239 Brand: Fireclass Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

FireClass 508.032.710 Precept En 8 Zone DC Repeater range of conventional control panels are powerful yet user friendly. They are designed and manufactured to a high standard and are approved by LPCB to EN54 parts 2 & 4. These panels are available in 2,4,8,16 & 32 Zone versions along with suitable repeaters for all models. The 8 – 32 Zone panel models are capable of driving any combination of 8 channel output expansion boards (relays, alarm circuits and open collector 0v outputs) which can be set to be zonally activated or common output modes.

Features

Designed to work with FireClass conventional detectors (up to 32 detectors per zone).
IS (Intrinsically Safe) zones selectable - In this mode the EOL device is changed to a 10K resistor
NLZ (Non Latching Zones) selectable - output relay disablement option for this function
Zone activation resistance typically 470 or 680 Ohms eg. callpoint or input signal.
2,4,8,16 & 32 Zone versions available - fully fault monitored.
Short circuit activated zones selectable
22 uF Capacitor zone EOL monitoring
Indication only zone mode option.
