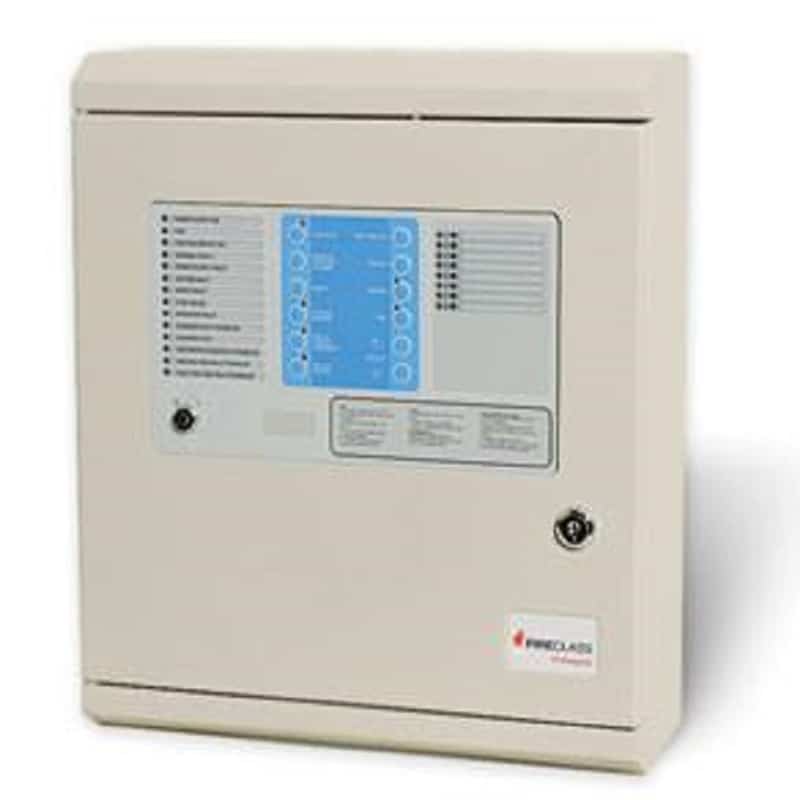

Fireclass 508.032.706 Precept EN 32 Zone
See all products from fireclassAED 7,812.53 VAT included
The Precept EN range of conventional control panels are powerful yet user friendly. They are designed and manufactured to a high standard and are approved by LPCB to EN54 parts 2 and 4.
These panels are available in 2,4,8,16 and 32 Zone versions along with suitable repeaters for all models. The 8 – 32 Zone panel models are capable of driving any combination of 8 channel output expansion boards (relays, alarm circuits and open collector 0v outputs) which can be set to be zonally activated or common output modes.
Each panel has extensive configuration options but remains easy to install, programme and operate.
Out of stock
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
The Precept EN range of conventional control panels are powerful yet user friendly. They are designed and manufactured to a high standard and are approved by LPCB to EN54 parts 2 and 4.
These panels are available in 2,4,8,16 and 32 Zone versions along with suitable repeaters for all models. The 8 – 32 Zone panel models are capable of driving any combination of 8 channel output expansion boards (relays, alarm circuits and open collector 0v outputs) which can be set to be zonally activated or common output modes.
Each panel has extensive configuration options but remains easy to install, programme and operate. This is supported by comprehensive documentation on commissioning, operating and maintenance. The panels are designed to work with a wide range of manufacturers detectors and are able to cope with many types of installation (new or retrofit).
Features
- Sturdy 1.5mm mild steel enclosure with textured, off white, paint finish (RAL 7035 as standard)
- Top knockouts for 20mm cable glands, rear oval cable knockouts and one knockout provided at bottom of panel
- Quality fibreglass circuit boards, surface mount components
- Display mounted controls access keyswitch
- Generous internal clearances for cabling and glanding
- 2,4,8 and 16 Zone models house up to 12Ah SLA battery set. 32 zone houses up to 18Ah set
- Motherboard and power supply/transformer mounted on easily removable chassis for ease of installation
- Text inserts used for zone descriptions
- Insertable text option for controls and panel indications allowing easier multilingual support
Specifications
- Mains Supply (tolerance +10 / -15%): 230V ac
- Max. Power Consumption: 240 W
- Mains Fuse (BEAB Approved Type): 3.15A 20mm
- Battery Fuse: 6.15A 20mm
- Max. PSU/Batt. Charger Output: 5 A
- Sounder Circuits (24V nominal): 4 @ 1 A
- Aux DC Output (24V nominal): 1 A
- Max. Size Battery Space: 2 x 18 Ah
- Mains Fail Batt. Current (no load): 55 mA
- As Above - 1 Zone In Alarm: 90 mA
- Mains Failed Voltage Output: 19.2 - 27V
- Repeater Panel Option: Yes
- Output Expansion Capability: Yes
- Standard Zonal Outputs: Zones 1-4
- Operating Temperature: -5° to 40°C; Operating Humidity: 5% to 95%
