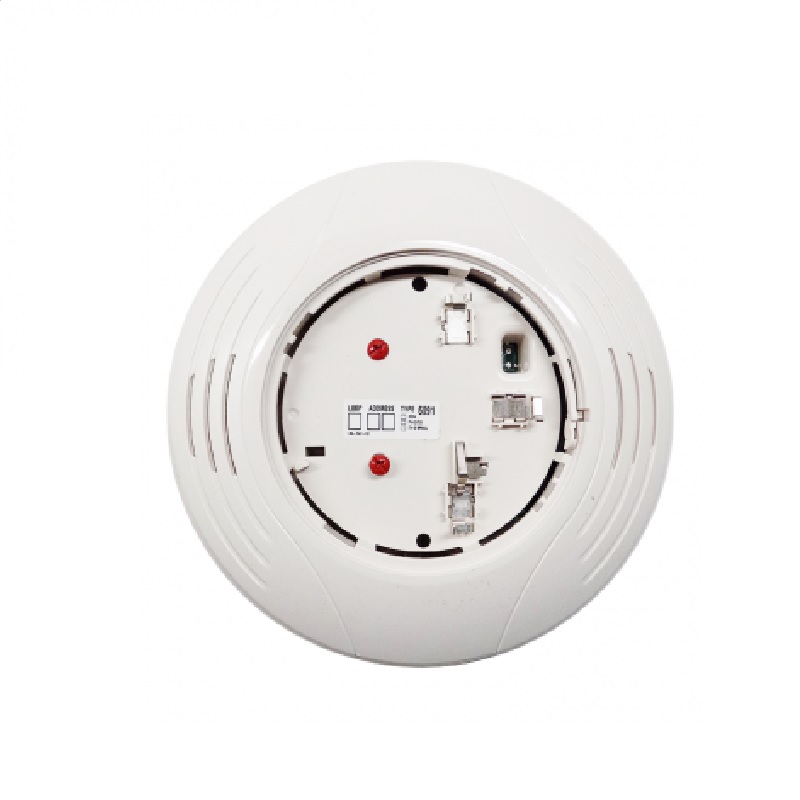

Farenhyt System Sensor B200S-IV Addressable Intelligent Sounder Base, Ivory

Name: Farenhyt System Sensor B200S-IV Addressable Intelligent Sounder Base, Ivory
SKU: fs05022039
Availability: InStock

AED 780.94 VAT included

Compare

Product Code : fs05022039 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Farenhyt System Sensor B200S-IV Addressable Intelligent Sounder Base, Ivory specialty base designs including relay, isolator, sounder, and low-frequency sounder options for Select Series detectors. The standard 4″ and 6″ bases offer a plug-in detector base intended for use in intelligent systems, with screw terminals provided for power (+ and –), and remote annunciator connections. Communication takes place overpower (+ and –) lines. The 4″ base offers a compact design while the 6″ base provides compatibility with a wider range of junction boxes

Features

Mechanical locking feature restricts removal of attached sensor head
Support for 12-24 AWG provides installation flexibility
Multiple base formats meet application requirements
Standard white color with ivory and black options
Bases enable quick and secure detector plug-in
Pre-wired mounting plate simplifies installation
Application driven feature sets
UL 268 compliant

Specifications

Product: Sounder Base
Brand: System Sensor
Model: B200S-IV
External Supply Voltage: 16 to 33 VDC (VFWR)
Standby Current: 500 μA maximum
Alarm Current: 35 mA maximum (at high volume setting); 15 mA maximum (at low volume setting)
SLC Operating Voltage: 15 to 32 VDC
SLC Standby Current: 300 μA maximum
