Extech - Passive Component LCR Meter - LCR200

Click to enlarge

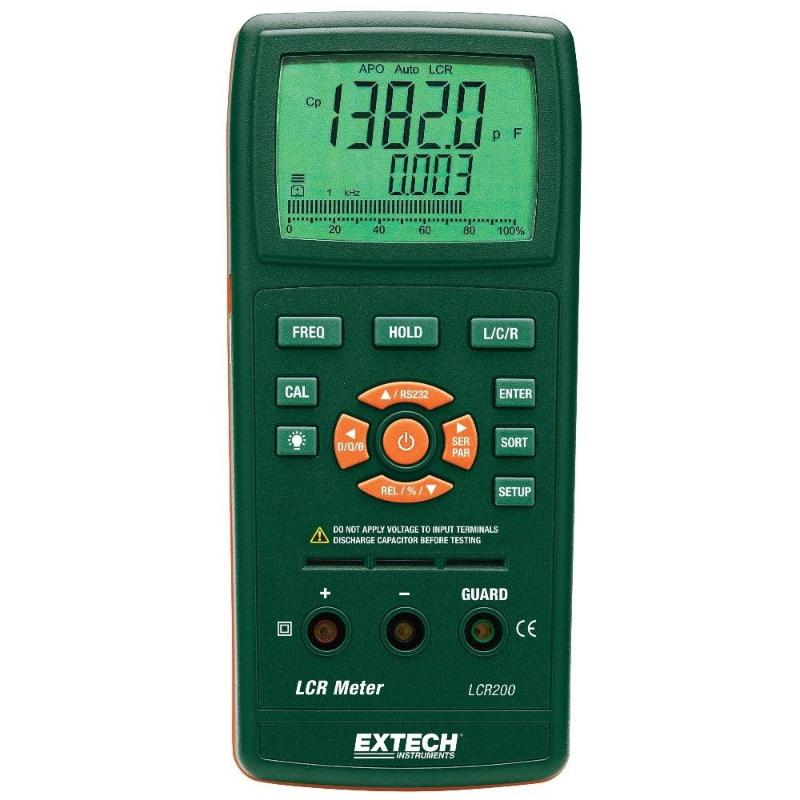

Extech – Passive Component LCR Meter – LCR200

Name: Extech - Passive Component LCR Meter - LCR200
SKU: fs0506258
Availability: OutOfStock

See all products from extech

AED 1,344.00 VAT included

Out of stock

Compare

Product Code : fs0506258 Brand: Extech Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

The LCR200 is a passive component LCR meter. Discover the tremendous value with a range of features that help this meter provide the precise measurements you need. See simultaneous 20,000/2,000 count display of the primary parameter on the high contrast backlit display. You can set Hi/Lo limits using absolute values or percentages. Open and Short Zero removes unwanted stray impedances from the measurement. Use the built-in test fixture or external test leads (included). The LCR200 has an Auto Power Off function that can also be disabled and a low battery indicator to alert you when to replace the batteries. Complete with test leads and 9V battery.

Features

Measures Inductance, Capacitance, and Resistance with secondary parameter Q (Quality), D (Dissipation), R (Resistance), P (Phase), ESR (Equivalent Series Resistance)
Simultaneous 20,000/2,000 count backlit display of the primary parameter (L, C or R) with the secondary parameter
Auto Select measurement function with 1kHz default test frequency
Five test frequencies
Set Hi/Lo limits using absolute values or percentage limits
Relative mode function
Parallel or Series equivalent circuit
Auto power off, Low battery and overrange indicators

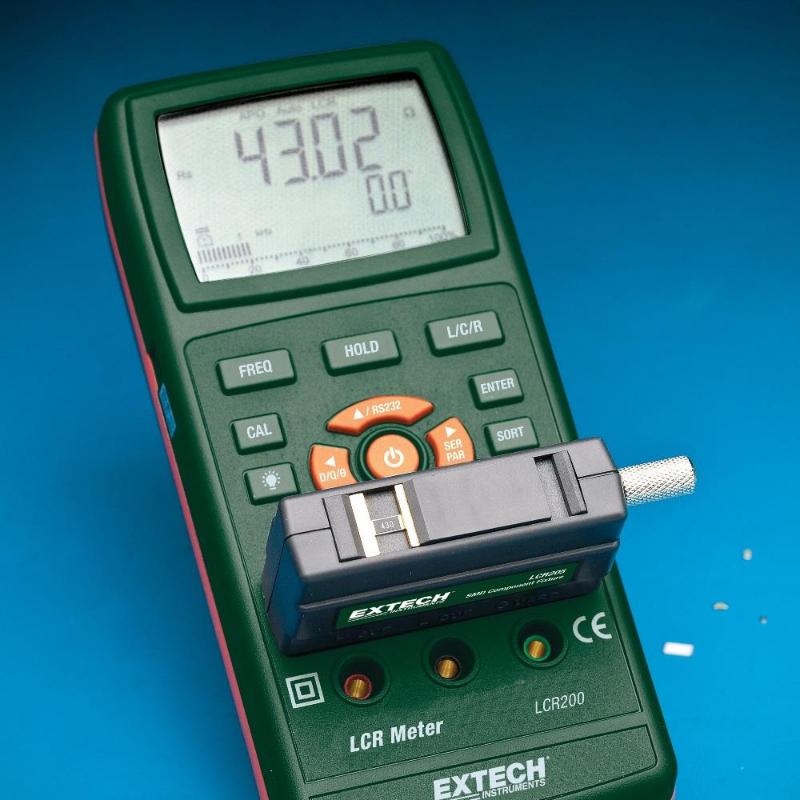

Built-in test fixture or use external test leads
Open and Short calibration removes unwanted stray impedances from the measurement
