Extech - CAT IV Insulation Tester/True RMS Multimeter - MG320

Click to enlarge

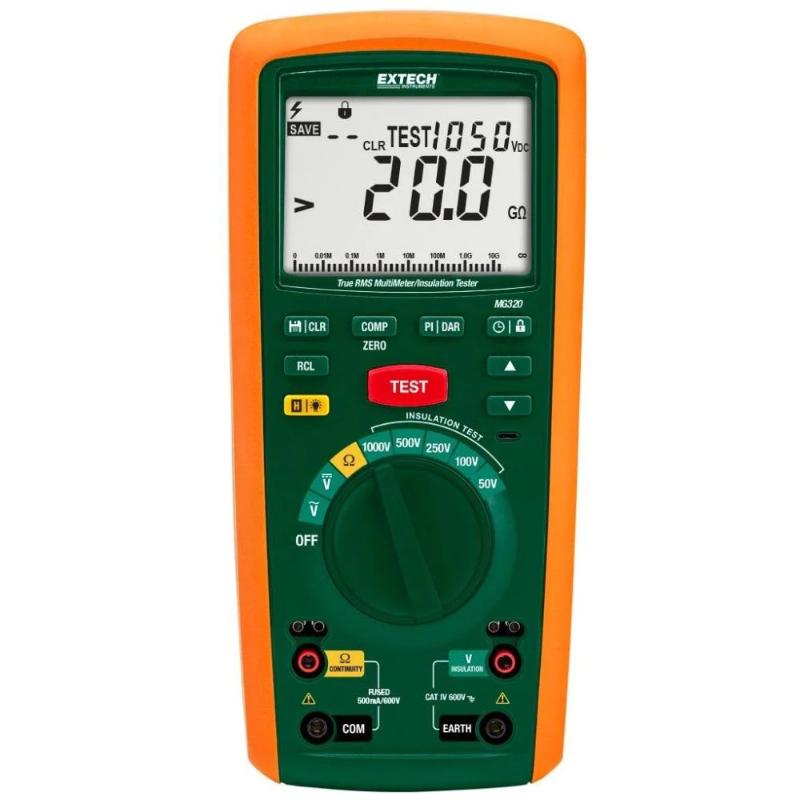

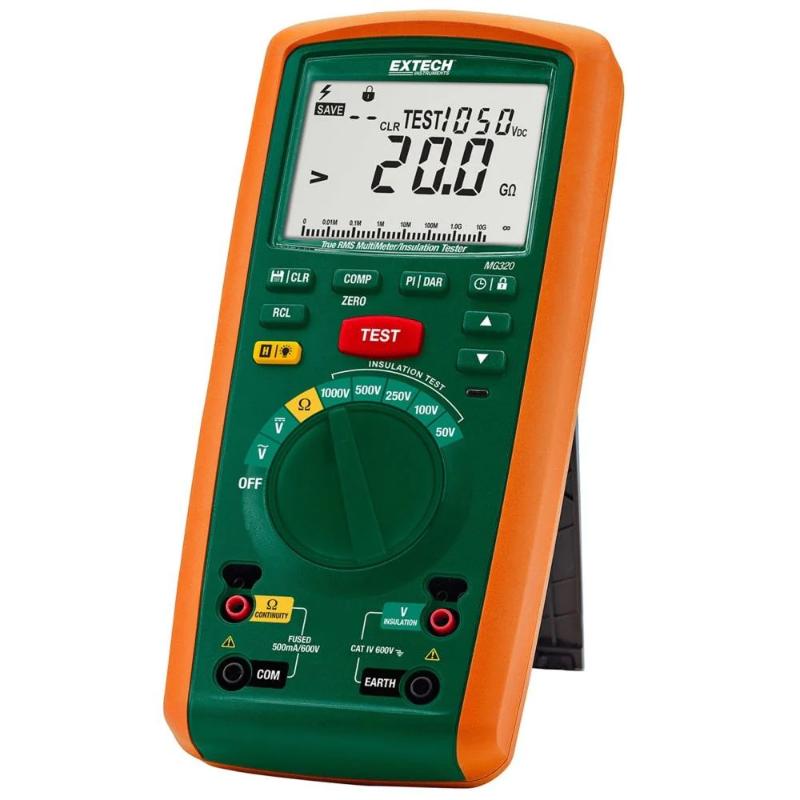

Extech – CAT IV Insulation Tester/True RMS Multimeter – MG320

Name: Extech - CAT IV Insulation Tester/True RMS Multimeter - MG320
SKU: fs0506319
Availability: OutOfStock

See all products from extech

AED 1,611.00 VAT included

Out of stock

Compare

Product Code : fs0506319 Brand: Extech Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Combines a portable 20G?/1000V Insulation Tester with a True RMS MultiMeter. Insulation tester includes PI/DAR modes, programmable timer, and a comparator for custom test configurations and quick results. Multimeter functions include AC/DC Voltage, Resistance, and Continuity Test. Manually store/recall up to 99 readings. Designed with rugged housing and large backlit 6,000 count LCD display with analog bargraph. Complete with test leads, alligator clip, 6 x AA batteries, and soft case.

Features

Measure Insulation Resistance to 20G?
5 Test Voltage ranges
Polarization Index (PI) and Dielectric Absorption Ratio measurements (DAR)
Low Resistance measurement with Zero function
Programmable timer feature sets the duration of test
Comparison mode allows user to set the pass/fail values for insulation measurements
Step voltage (10% steps at 50% to 120% of range)
Auto-discharge of voltage test signal
Lock power on function for hands-free operation
