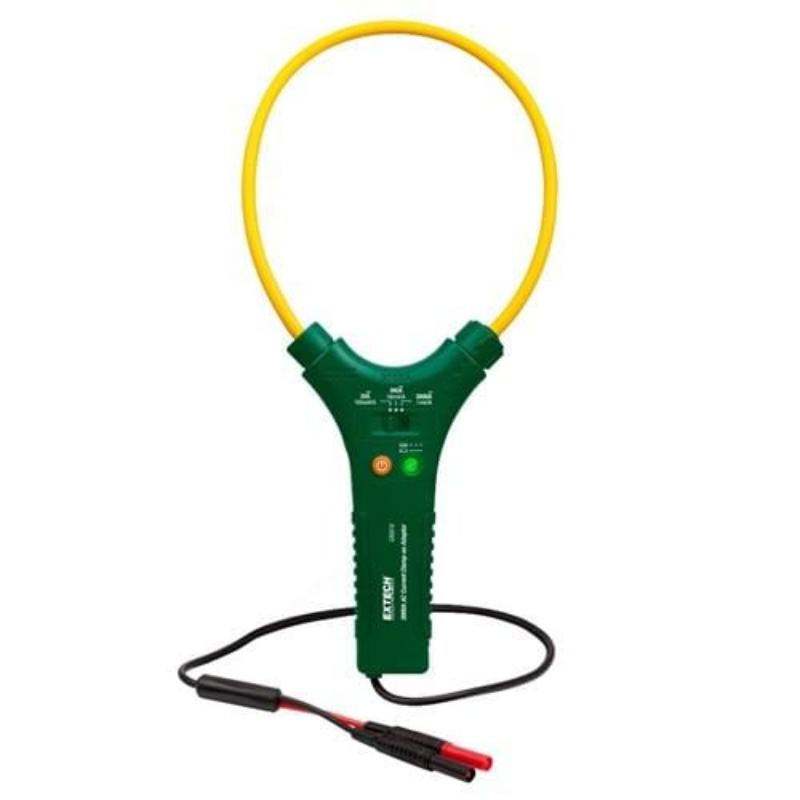

Extech – 3000A AC Flex Clamp-On Adaptor – CA3018

Name: Extech - 3000A AC Flex Clamp-On Adaptor - CA3018
SKU: fs0506535
Availability: OutOfStock

See all products from extech

AED 635.00 VAT included

Out of stock

Compare

Product Code : fs0506535 Brand: Extech Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

The CA3018 is a 3000A AC flex clamp-on adaptor for multimeters and clamp on meters with standard sized banana plugs. The CA3018 is an 18 inch flexible clamp capable of measuring AC Currents up to 3000A. Complete with built-in flex clamp cable, 6.6ft (2m) lead with banana plugs and two AAA batteries. UL listed with a CAT IV 600V safety rating.

Features

Measure AC Current up to 3000A
Flexible 18" (45.7cm) clamp jaw easily wraps around bus bars and cable bundles
7.5mm cable diameter fits into tight spaces and around large conductors
Measures AC Current in three ranges
Easy twist clamp cable closure to Lock or Open
Compatible with most multimeters and clamp meters with standard sized banana plug inputs
Complete with built-in flex clamp cable, 6.6ft (2m) lead with banana plugs, and two AAA batteries

Specifications

Brand: Tekneka
Product: 3000A AC Flex Clamp-On Adaptor
Model: CA3018
AC Current Ranges: 30.00A (100mV per Amp output); 300.0A (10mV per Amp output); 3000A (1mV per Amp output)
Max Resolution: 0.01A
Basic Accuracy: ±3%FS (45 to 500Hz)
Flex Cable Diameter: 0.3" (7.5mm)
Flex Cable Tip Diameter: 0.51" (13mm)
