Extech - 1200A 3-Phase Power Analyzer/Datalogger - 382100

Click to enlarge

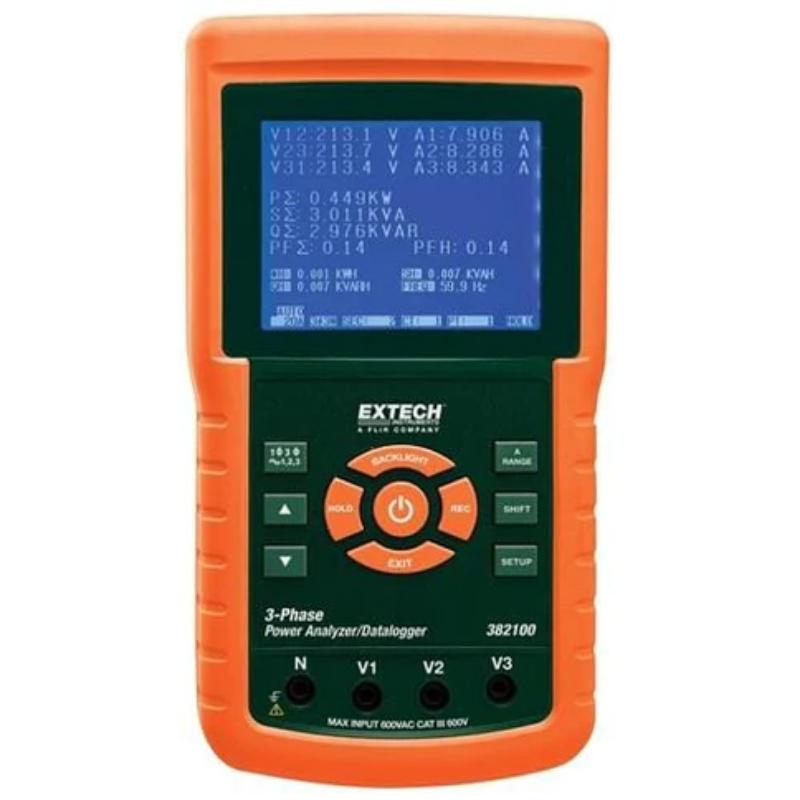

Extech – 1200A 3-Phase Power Analyzer/Datalogger – 382100

Name: Extech - 1200A 3-Phase Power Analyzer/Datalogger - 382100
SKU: fs0506631
Availability: OutOfStock

See all products from extech

AED 9,840.00 VAT included

Out of stock

Compare

Product Code : fs0506631 Brand: Extech Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

The 382100 is a 3-Phase Power Analyzer/Datalogger that saves data (up to 30,000 sets of measurements) on an SD card in Excel format for easy transfer to your PC. It provides a full system analysis with up to 35 parameters including: V (phase-to-phase), V (phase-to-ground) – A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), and Phase Angle. Readings are displayed on a large, dot matrix, sun-readable, backlit LCD. Comes with three current clamps, four voltage leads with alligator clips, eight AA batteries, SD memory card, Universal AC adapter (100 to 240V), case, and user manual.

Features

Single phase, 3-phase/3-wire or 3-phase/4-wire systems
Large backlighting LCD displays 35 parameters simultaneously (MW, kVAR, MVA, PF plus the voltage and current of the 3 phases)
Displays Active Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Power Factor
Current measurements to 1200A and Voltage measurements to 600V
MWH, MVAh, MVARh energy measurements
Adjustable CT ratio (1 to 600) and PT ratio (1 to 1000)
Automatically logs up to 30,000 sets of measurements with 2GB SD memory card
User-programmable sampling time from 2 to 7200 seconds
