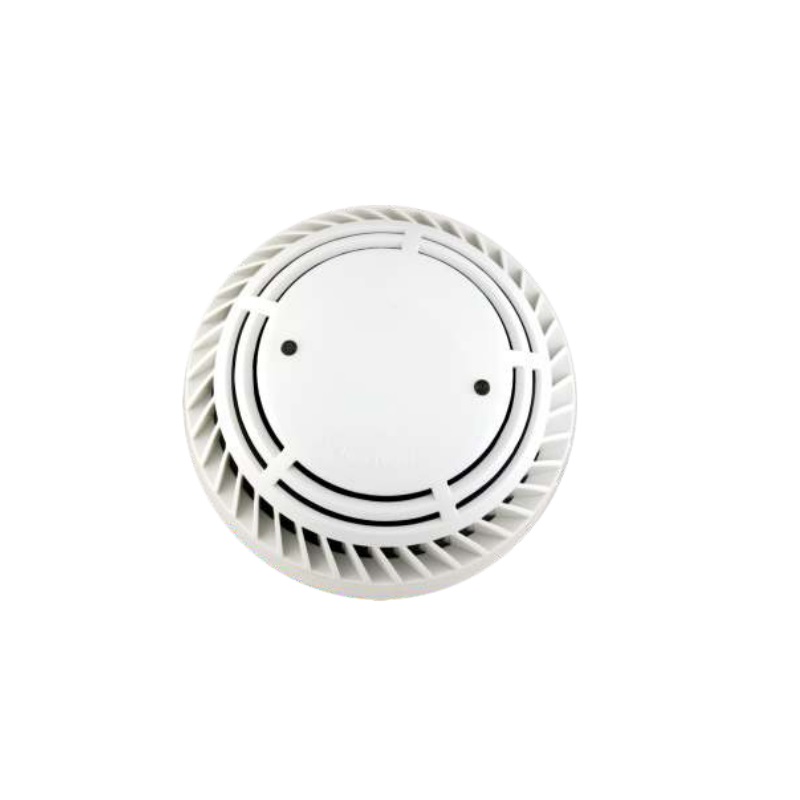

EuroTech EUA-HD Analogue Addressable Heat Detector

Name: EuroTech EUA-HD Analogue Addressable Heat Detector
SKU: fs0504109
Availability: InStock

See all products from eurotech

AED 110.25 VAT included

Compare

Product Code : fs0504109 Brand: EuroTech Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

EuroTech EUA-HD Analogue Addressable Heat Detector has been designed to be fully compatible with the Eurotech range of intelligent control panels. Compliant to EN54-5 and 7 the EUA-D series detectors are available in Optical, Heat, and combined Smoke/Heat detector versions. Optionally they can be fitted with a short-circuit loop isolator.

Features

SMD circuit board design. High quality and reliability guaranteed
Advanced detection and communication protocols
Durable sensor head, no need for replacement
Easy installation and maintenance
Dual LEDs for 360º visibility
Sleek low-profile housing

Specifications

Product: Addressable Heat Detector
Brand: EuroTech
Model: EUA-HD
Supply Voltage: Loop Powered - 17 V to 30 V DC
CURRENT - QUIESCENT / SURGE: 450 uA max.
Current - Device in Alarm: 4 mA - Alarm LED Iluminated
SENSITIVITY: According to EN54-5 and EN54-7
CABEL SIZE: 0.5-2.5 mm²
RESET/STAR-UP TIMES: 20 seconds max
DIMENSIONS / WEIGHT: 100 (D) x 50 (H) mm inc. base / 92 g (without base) & 144 g inc. base
