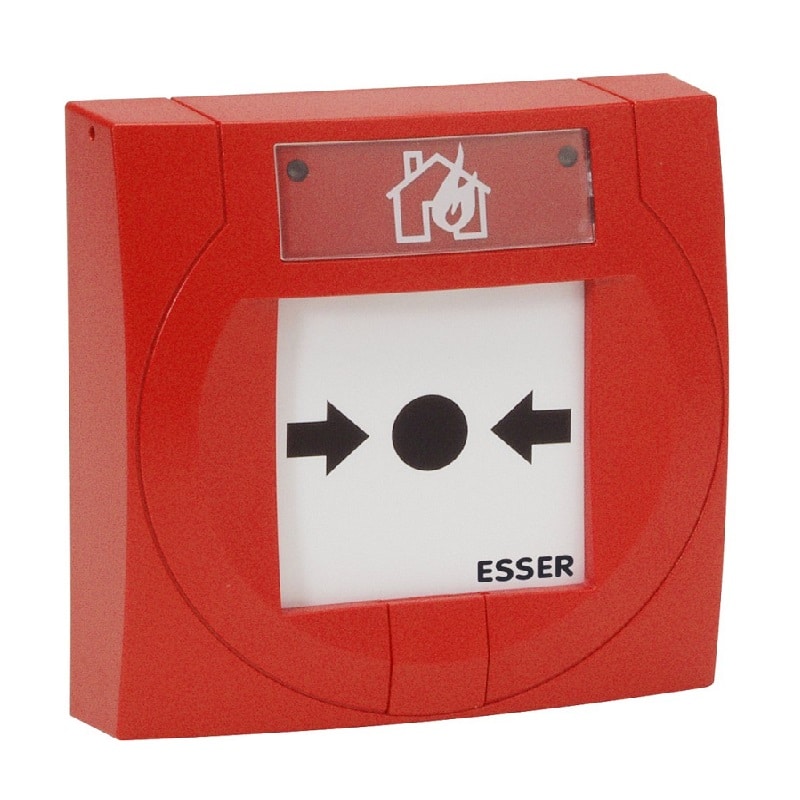

Esser IQ8MCP Manual Call Point compact, small, red, with isolator and glass pane

Name: Esser IQ8MCP Manual Call Point compact, small, red, with isolator and glass pane
SKU: FS09006
Availability: InStock

See all products from esser

Original price was: AED 4,357.50.Current price is: AED 2,662.80. VAT included

Esser 804971 Manual Call Point suitable for esserbus and powered loop connection, with soft address coding, alarm latch and alarm indicator. Conventional detectors can be connected to input of the MCP. Without BUS communication, the detector operates as conventional MCP. Detector housing is included.

Compare

Product Code : FS09006 Brand: Esser Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Features

Detectors that are not ready for operation can be marked with the "Out of order" label by reversing the enclosed glass pane
Triple key function (test, open, reset)
Plug-in connection terminals
Optional terminal
Flat design

Specifications

Product: Manual Call Point
Brand: Essar
Model: IQ8MCP
Housing: PC ASA plastic
Color: red, similar to RAL 3020
Dimensions: W: 88 mm H: 88 mm D: 21 mm, W:88 mm H: 88 mm D: 57 mm (with surface mount housing)
Operating voltage: 8 ... 42 V DC
Quiescent current @ 19 V DC: 45 ?A
Alarm current w/o communication curtain: 18 mA
No. of detector/zone: max. 127 detectors per loop (according to VdS)
Operation indicator: LED, green
Alarm display: red LED and yellow actuation indicator
Connection terminal: max. 2.5 mm² (AWG 26-14)
Application temperature: -20 °C ... 70 °C
Storage temperature: -30 °C ... 75 °C
