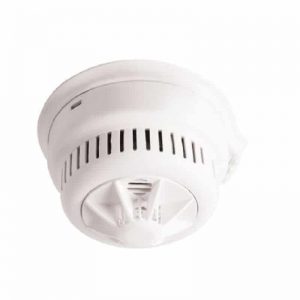

Firehawk FH450RB Mains Powered Heat Alarm with Rechargeable Lithium Cell Back-up and Fast-Fix Base AED 262.50 VAT included

Click to enlarge

EP203 Automatic Extinguisher 3 Zone Control Panel

Name: EP203 Automatic Extinguisher 3 Zone Control Panel
SKU: fs107770
Availability: InStock

AED 4,767.00 VAT included

Compare

Product Code : fs107770 Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

EP203 Automatic Extinguisher 3 Zone Control Panel acts as both a conventional fire alarm panel and an automatic extinguisher control panel. Specifically designed for use in areas housing expensive, dangerous or irreplaceable items of equipment, it features an intuitive 128 x 64-pixel display that gives clear and concise feedback to the user, installer and commissioning engineer. It has six monitored inputs (including hold & abort), a time-stamped log, adjustable flood times and volt-free changeover relays for fire, local fire, 1st stage active, 2nd stage active, extractor fan and fault.

Features

Connections for up to 8 flush or surface remote status units with their own LCDs, manual release and mode switches. Single gang economy status units also available.
Any combination of activated zones can be programmed to automatically start the panels extinguishant release sequence.
Functions as a standard 3 zone fire panel with additional circuitry for controlling the release of fire suppressing gas.
Ideal for use in computer rooms, telecommunication centers, archive storage areas, museums, etc.
Certified to EN54-2/4 and EN12094-1 by the Loss Prevention Certification Board (LPCB).
Optional relay expansion boards and single gang abort & hold buttons
3 conventional sounder circuits (two x 1st stage, one x 2nd stage).
Wide range of monitored inputs and auxiliary outputs.

Specifications

Product: Automatic Extinguisher Control Panel
Mains supply: 230V 50/60Hz
Mains rated current: 810mA max
Total output current limited to: 1.5A @ 230Vac continuous, 3A peak (ImaxA eq 800mA).
Quiescent current: 40mA (on mains fail). Zone quiescent 2mA max.
Max battery size and type: 2 x 12V 7Ah VRLA connected in series.
No. of detector zone circuits: 3 @ 19-28Vdc (Max. length per circuit is 250m).
Max. devices per detector zone: 20 detectors (or 32 detectors/manual call points combined).
No. of conventional sounder circuits: 3 (two x 1st stage; one x 2nd stage). Max. length per circuit is 50m).
EOL resistor value: 6800? 5% Tol. 0/25W (blue, grey, red, gold).
Max. sounder output current: 3 x 200mA.
Max. sounder output current: 3 x 200mA.
Indicators: Multiple indicators are provided refer to the EP203 instructions for details.
Product dimensions (mm): 439 W x 276 H x 70 D mm (back box); 467 W x 293 H x 29 D mm (lid).
Construction & finish: Metal back box; metal chassis plastic lid.
