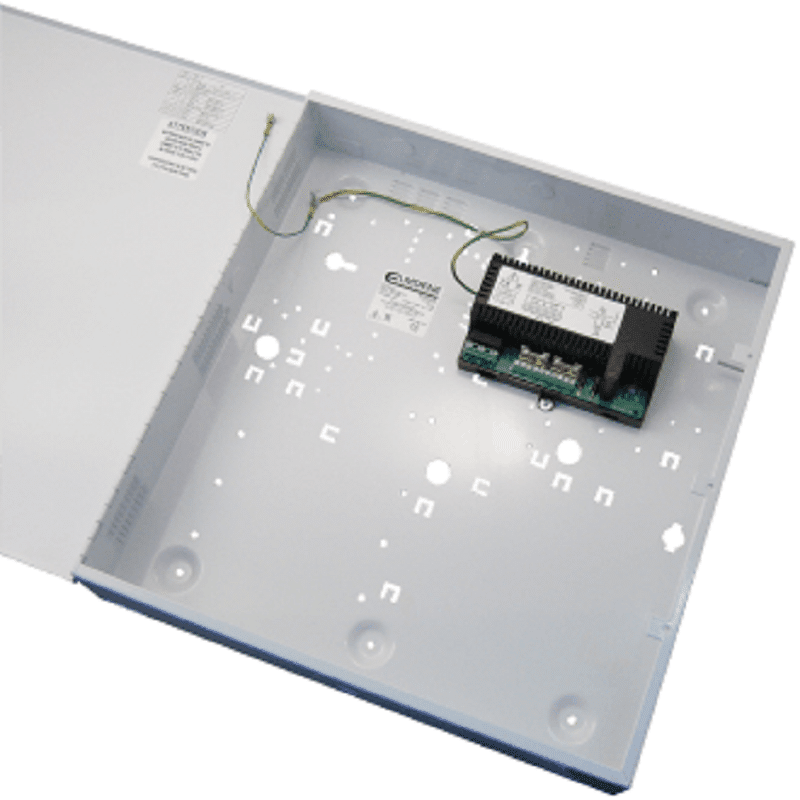

Elmdene STX2402-C 24V EN54-4 Power Supplies for Fire Systems

Name: Elmdene STX2402-C 24V EN54-4 Power Supplies for Fire Systems
SKU: fs10842
Availability: InStock

See all products from elmdene

AED 694.05 VAT included

The new STX range of switch mode power supplies has been specifically designed for EN54 compliant fire systems. Available in either 1A, 2A, 5A or 10A versions they are certified to EN54-4:1997, A1:2002 and A2:2006.

Compare

Product Code : fs10842 Brand: Elmdene Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

The units include intelligent battery charging using Elmdene’s efficient EcoCharge technology, possess mains and battery monitoring with independent volt-free outputs and also feature battery deep discharge protection in the event of a prolonged mains failure.

The inclusion of LED indicators provides quick diagnostics of the status of the power supply, while a variety of enclosures offer the installer a choice of standby battery backup options.

Approvals:
Certified by UL (EN54-4:1997 +A1: 2002 +A2: 2006)
CE Mark RoHS Compliant

Features

27.6V dc output
Cost effective switch mode technology
Energy efficient: ? More efficient in operation, ? Saves power reducing power bills, ? Longer life in the field, ? Less prone to failure
Intelligent battery charging and monitoring using Elmdene's EcoCharge technology
Deep Discharge Protection
Remote fault signaling
Full rated current to load plus additional current for battery charging
LED indication: ? Mains status, ? Output Fault, ? Battery fault, ? Charger fault,
Volt-free fault output - EPS: ? Mains fail
Volt-free fault output - PSU fault: ? Battery fault, ? Charger fault, ? Loss of output
