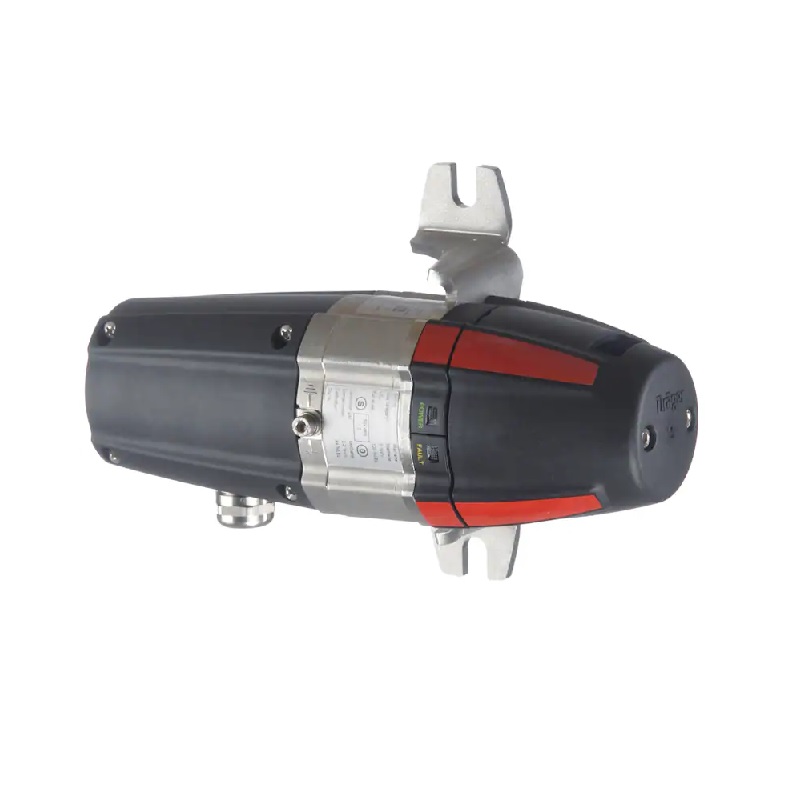

Dräger PIR 7000 type 334 (M25) HART Complete Set

Name: Dräger PIR 7000 type 334 (M25) HART Complete Set
SKU: fs05025088
Availability: InStock

AED 23,257.50 VAT included

Compare

Product Code : fs05025088 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

Dräger PIR 7000 type 334 (M25) HART Complete Set With Ex e junction box incl. M20 cable gland, splash guard, status indicator, and mounting set, are already pre-assembled. The Dräger PIR 7000 is an explosion-proof point infrared gas detector for continuous monitoring of flammable gases and vapours. With its stainless steel SS 316L enclosure and drift-free optics, this detector is built for the harshest industrial environments, e.g. offshore installations.

Features

Configurable gas library – methane, propane and ethylene fixed, up to 10 additional substances can be uploaded
Developed and manufactured according to the SIL guidelines, SIL 2 certified by TÜV
Multiple mounting and configuration capabilities (signals acc. to NAMUR NE 43)
Beam block warning in case of dirty optics for preventive maintenance
Double-compensating, non-imaging optics (using 4-beam technology)
Continuous self-testing in the context of the IEC/EN 61508 standard
Single cable multidrop capability using HART® communication
Extended temperature range of up to + 77 °C / + 170 °F
Conventional 4-to-20-mA analogue signal output
Resistant towards shock and vibration up to 4 G

Specifications

Product: Explosion proof gas transmitter with infrared sensor technology
Brand: Drager
Model: PIR 7000
Principle of operation Temperature-compensated infrared absorption, 4-beam technology
Power supply: 13 to 30 V DC, 3-wire
Material: Stainless steel SS 316L
Connecting thread: M25 or ¾'' NPT
Power consumption: 5.6 W (typical)
Dimensions: 160 mm x Ø 89 mm / 6.3 '' x Ø 3.5 ''
Weight: 2.2 kg (without accessories)
