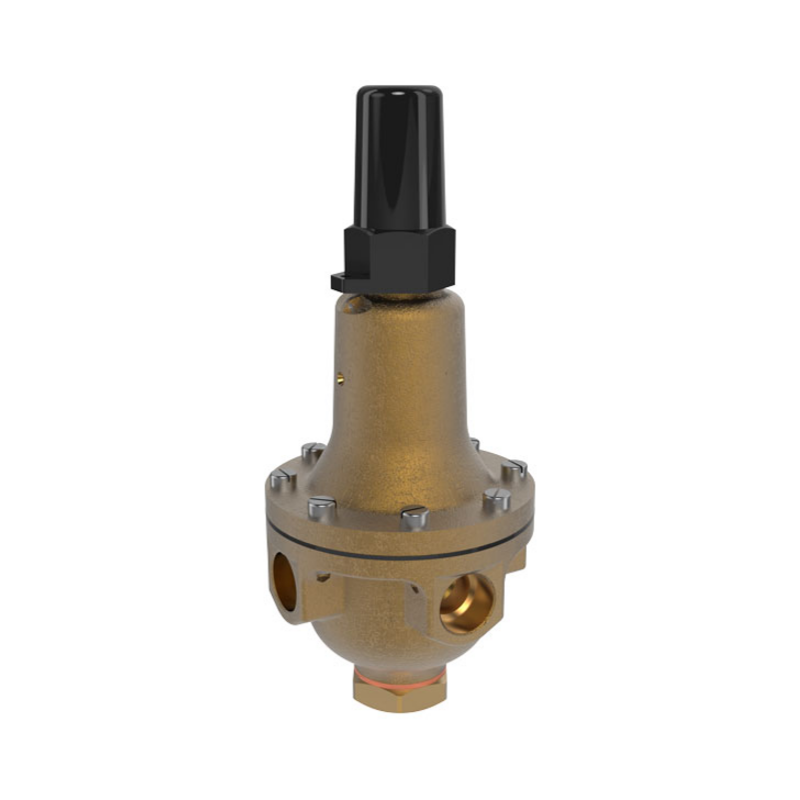

CLA-VAL Pressure Reducing Pilot Control 3/8″ 2.1-11.6Bar (CRD Valve)
AED 3,906.00 VAT included
3/8″ pilot-operated pressure reducing control valve with 2.1-11.6Bar (30-165PSI) adjustable range. For water distribution systems.
In stock
Product Code : fs0507671
Brand: CLA-VAL
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
The CLA-VAL 90G-21 pilot control provides precise downstream pressure regulation via diaphragm-actuated main valve. Features 3/8″ connections, stainless steel components, and field-adjustable set point. Suitable for municipal and industrial water systems up to 65°C.
Features
- Precision pressure regulation
- Field-adjustable set point
- Stainless steel trim (SS316)
- 3/8" NPT connections
- Diaphragm-actuated
- Fail-close operation
- Low maintenance design
- Integral strainer
- 65°C max temperature
Specifications
- Size: 3/8" NPT
- Pressure Range: 2.1-11.6Bar
- Max Inlet Pressure: 25Bar
- Flow Capacity: 30 l/min @ 5Bar ?P
- Body Material: DZR Brass
- Diaphragm: EPDM/NBR
- Spring: SS302
- Adjustment: Screw-type with locknut
- Standards: NSF/ANSI 61, AWWA
- Weight: 1.5kg
