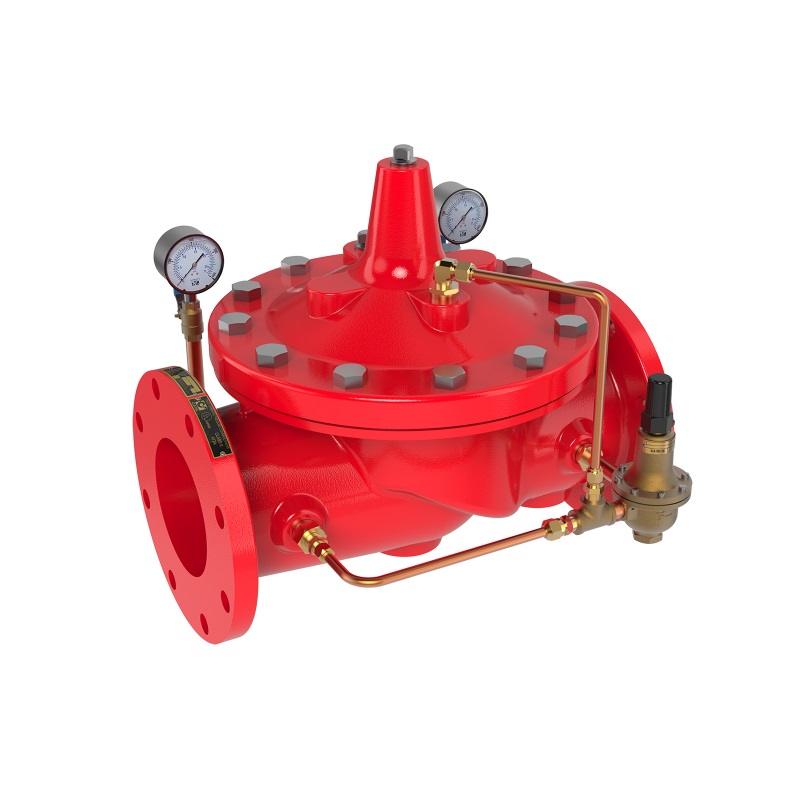

CLA-VAL 90A/G-21 Fire Protection 10 Inch Pressure Reducing Valve Class 150 RF
AED 20,763.75 VAT included
Description
CLA-VAL 90A/G-21 Fire Protection 10 Inch Pressure Reducing Valve Class 150 RF are indispensable in any fire protection system. Our diaphragm actuated design is proven highly reliable and easy to maintain. We offer both a globe or angle pattern with a full range of adjustments. These valves are also available in a variety of material options. Epoxy coating is strongly recommended for all fire system valves (excluding bronze valves). The 90G-21 and 90A-21 can be supplied with an optional internal and external epoxy coating of the main valve wetted surfaces.
Features
- Accurate Pressure Control
- U.L. Listed, MEA Approved
- Proven Reliable Design
- Globe or Angle Pattern
- In Line Service
Specifications
- Product: Pressure Reducing Valve
- Brand: CLA-VAL
- Model: 90A/G-21
- Size: 10 Inch
- Main Valve Body & Cover: Ductile iron - ASTM A536 / EN-GJS-400
- Pressure Differential: Min. 10 psi / 0.7 bar
- Pressure Adjustment Range: 30 - 175 psi / 2.1-12.1 bar
- Temperature Range: Water max. 180°F / 82°C
- Maximum flow rate: 6000 gpm, 1361 m3/h
