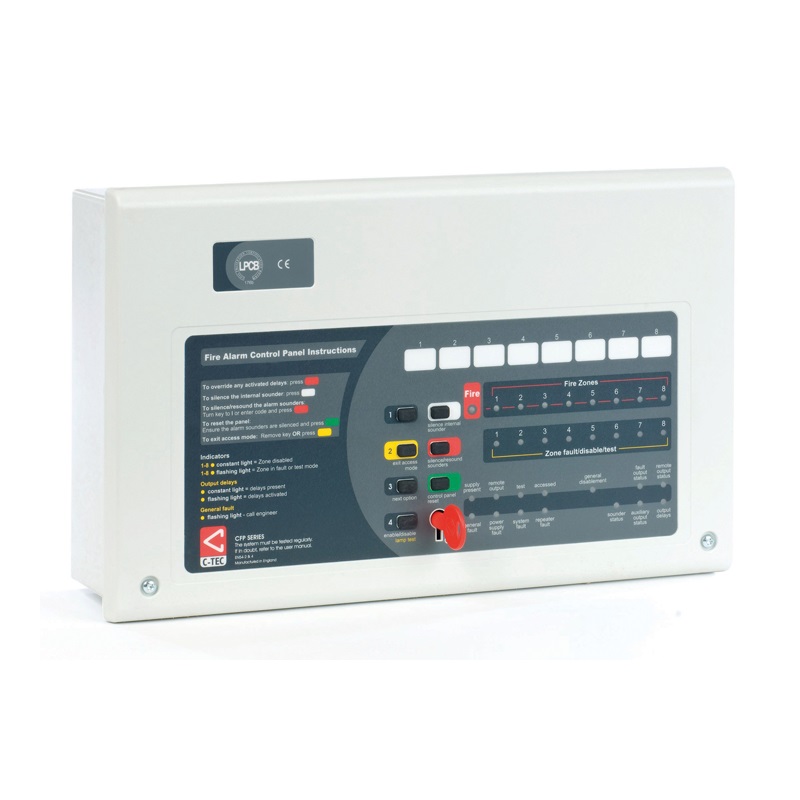

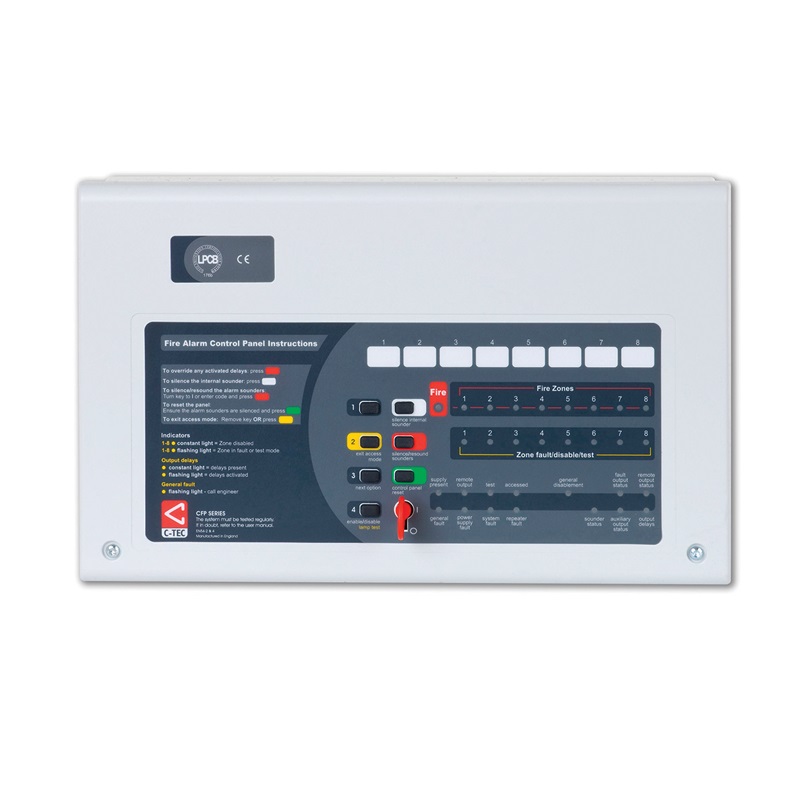

C-Tech CFP760 8 Zone Repeater Panel

Name: C-Tech CFP760 8 Zone Repeater Panel
SKU: fs1118219
Availability: InStock

See all products from c-tech-cfp

AED 1,365.00 VAT included

Compare

Product Code : fs1118219 Brand: C-Tech CFP Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

C-Tech CFP760 8 Zone Repeater Panel can be used to repeat the functions of a master CFP standard or AlarmSense 2-8 zone fire panel at remote parts of site (e.g. all potential fire service entrances). Supplied in an attractive flush or surface mountable plastic enclosure, 2, 4 and 8 zone versions are available, each featuring four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad/keyswitch entry. A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities. Comprehensive test and fault finding facilities are also provided.

Features

Master/Repeater communication achieved using CFP761 network driver cards (one CFP761 is supplied with the Repeater, an additional CF761 card is required at the master CFP).
Can be used to repeat the functions of a master CFP standard or AlarmSense 2-8 zone fire panel at remote parts of site (e.g. all potential fire service entrances).
Includes its own Mains power supply that requires its own standby battery supply.
Attractive flush or surface mountable plastic lid and enclosure - no bezel required.
Provides the user with access to all AL1 and AL2 functions.
Total repeater network cable length should not exceed 1KM.
Communicates over screened two-wire fire resistant cable.
Up to 8 repeaters per CFP master.

Specifications

Product: 8 Zone Repeater Panel
Brand: C-Tech
Model: CFP760
Mains supply 230V 50/60Hz.
Max battery size and type: 2 x 12V 2.1Ah VRLA connected in series for 72 hour standby. 2 x 12V 1.2Ah for 24 hours.
Compatibility: Compatible with C-TEC's CFP Standard and CFP AlarmSense panels. (CFP Economy panels cannot be extended with this product).

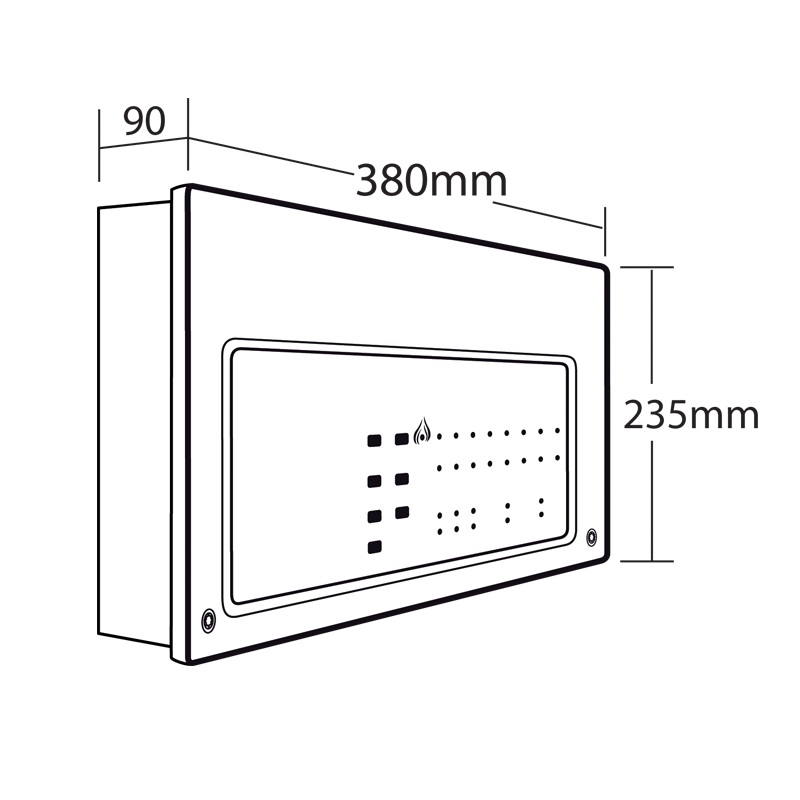

Product dimensions (mm): 380 W x 235 H x D 96mm.
Construction & finish: Plastic lid and base; RAL7035 textured
IP Rating: IP30.
Weight: 1.75kg (without batteries)
