C-Tech CFP708E-4 Economy 8 Zone Conventional Fire Alarm Panel

Click to enlarge

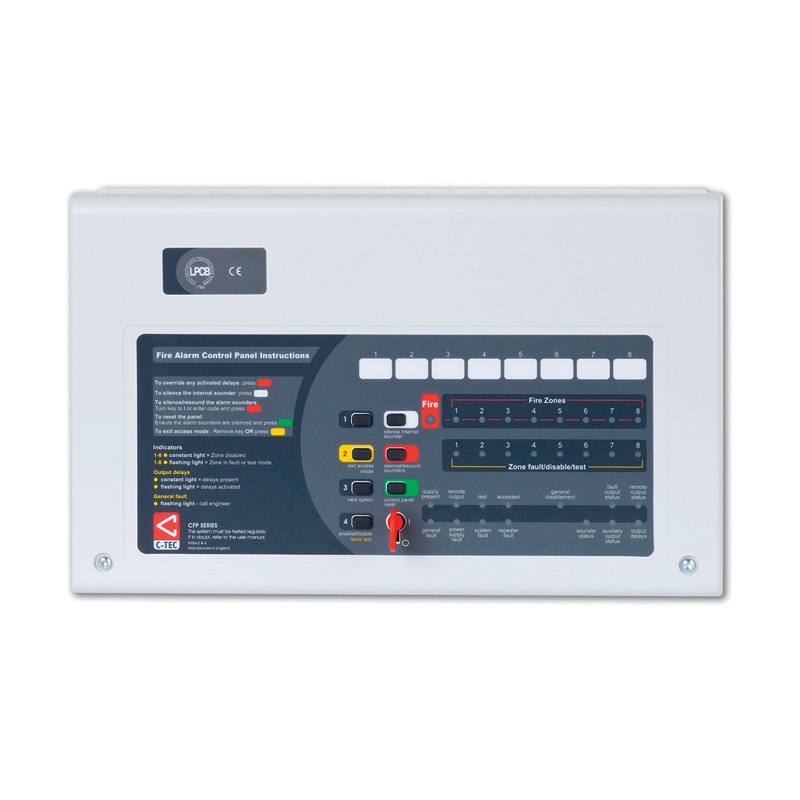

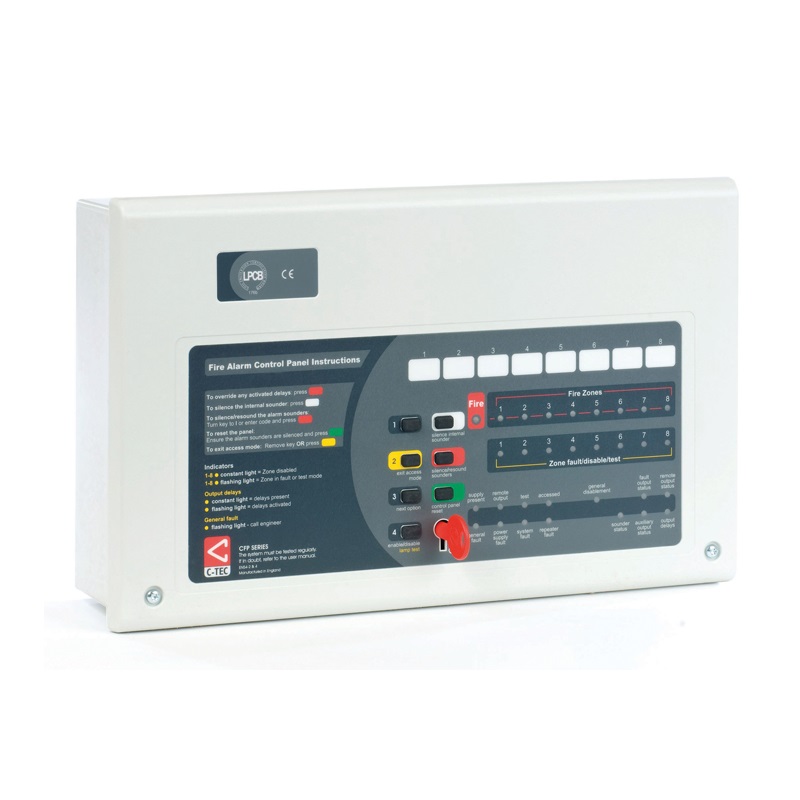

C-Tech CFP708E-4 Economy 8 Zone Conventional Fire Alarm Panel

Name: C-Tech CFP708E-4 Economy 8 Zone Conventional Fire Alarm Panel
SKU: fs1118222
Availability: InStock

See all products from c-tech-cfp

AED 886.20 VAT included

Compare

Product Code : fs1118222 Brand: C-Tech CFP Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

C-Tech CFP708E-4 Economy 8 Zone Conventional Fire Alarm Panel, LPCB certified to EN54-2/4, C-TEC’s CFP 8 zone economy fire alarm panel offers an array of user and installer-friendly features at a very competitive price. Supplied in an attractive flush or surface mountable plastic enclosure, it includes eight detector zones, four conventional sounder circuits, class change and alert inputs, four open collector outputs (fire, fault, reset and remote) and combined keypad/keyswitch entry. Unlike our Standard CFP fire panel, the CFP708E-2 is NOT compatible with CFP repeaters, relay expansion boards or EN54-13 interface cards. It also has limited engineering functions.

Features

Intuitive user-friendly interface with colour-coded buttons and combined keypad/keyswitch entry
Third-party certified to EN54 parts 2 and 4 by the Loss Prevention Certification Board (LPCB)
Attractive flush or surface mountable plastic lid and enclosure - no bezel required
Fully compatible with C-TEC's ActiV range of conventional fire detectors
Four open-collector outputs (Fire, Fault, Remote and Reset)
Integral 1.5A EN54-4/A2 compliant switch mode PSU
Wide range of test and fault-finding facilities
Four conventional sounder circuits
No system expansion connections
Manufactured by C-TEC in the UK

Specifications

Product: Economy 8 Zone Conventional Fire Alarm Panel
Brand: C-Tech
Model: CFP708E-4
Mains supply: 230V 50/60Hz.
Internal power supply: 19V-28.5V (27V nominal). Ripple 7V maximum (battery fault).
Max battery size and type: 2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah.
Alarm voltage: 27V max, 20V min (final battery voltage).
IP Rating: IP30.
Weight: 1.75kg (without batteries).
Approvals/certifications: Certified to EN54-2/4 by the LPCB (176b) / (0832-CPR-F0576).
