C-Tech CFP708-4 Standard 8 Zone Conventional Fire Alarm Panel

Click to enlarge

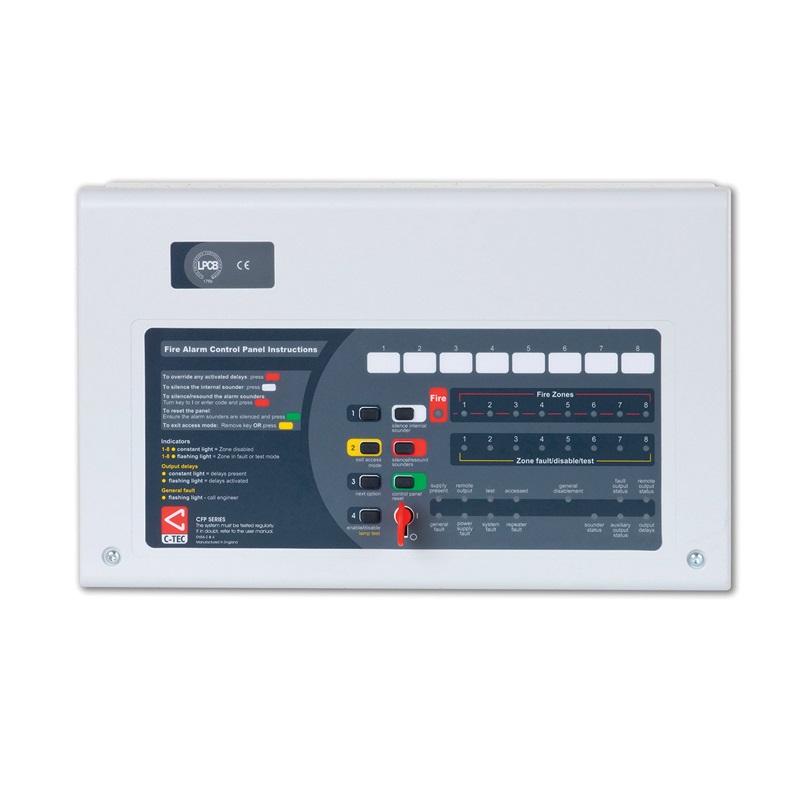

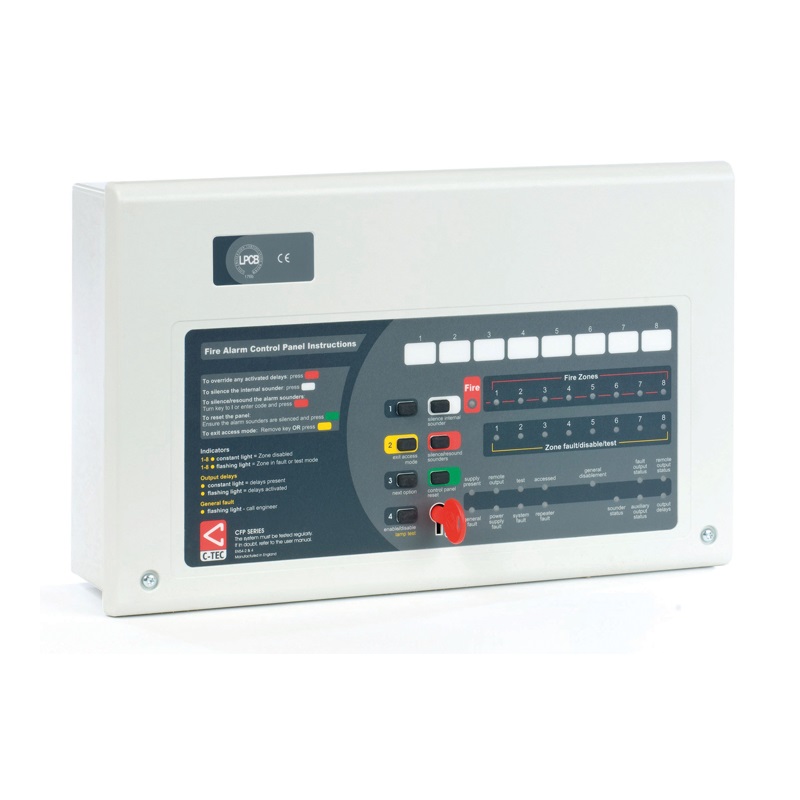

C-Tech CFP708-4 Standard 8 Zone Conventional Fire Alarm Panel

Name: C-Tech CFP708-4 Standard 8 Zone Conventional Fire Alarm Panel
SKU: fs1118218
Availability: InStock

See all products from c-tech-cfp

AED 1,365.00 VAT included

Compare

Product Code : fs1118218 Brand: C-Tech CFP Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

C-Tech CFP708-4 Standard 8 Zone Conventional Fire Alarm Panel, LPCB certified to EN54-2/4, C-TEC’s CFP 8 zone conventional fire alarm panel offers an array of user and installer-friendly features at a very competitive price. Supplied in an attractive flush or surface mountable plastic enclosure, it includes eight detector zones, four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad/keyswitch entry. A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities. Comprehensive test and fault finding facilities are also provided. Optional repeaters, relay expansion boards and EN54-13 system compliance devices are also available.

Features

System expansion connections provided for up to eight two-wire repeaters (one CFP761 network card required per system), optional CFP relay boards and optional EN54-13 compliant sounder circuit boards.
Third-party certified to EN54 parts 2 and 4 by the Loss Prevention Certification Board (LPCB) with optional EN54 part 13. compliance from the BSI.
Wide range of engineering functions including zone test, coincidence, zone delay and non-latching zones.
Intuitive user-friendly interface with colour-coded buttons and combined keypad/keyswitch entry.
Attractive flush or surface mountable plastic lid and enclosure - no bezel required.
Fully compatible with C-TEC's ActiV range of conventional fire detectors.
Integral 1.5A EN54-4/A2 compliant switch mode PSU.
Two open-collector outputs (Remote and Reset).
Space for two x 12V 3.3Ah VRLA batteries.
Manufactured by C-TEC in the UK

Specifications

Product: 8 Zone Conventional Fire Alarm Panel
Brand: C-Tech
Model: CFP708-4
Mains Supply: 230V 50/60Hz.
Internal power supply: 19V-28.5V (27V nominal). Ripple 7V maximum (battery fault).
Construction & finish: Plastic lid and base; RAL7035 textured.

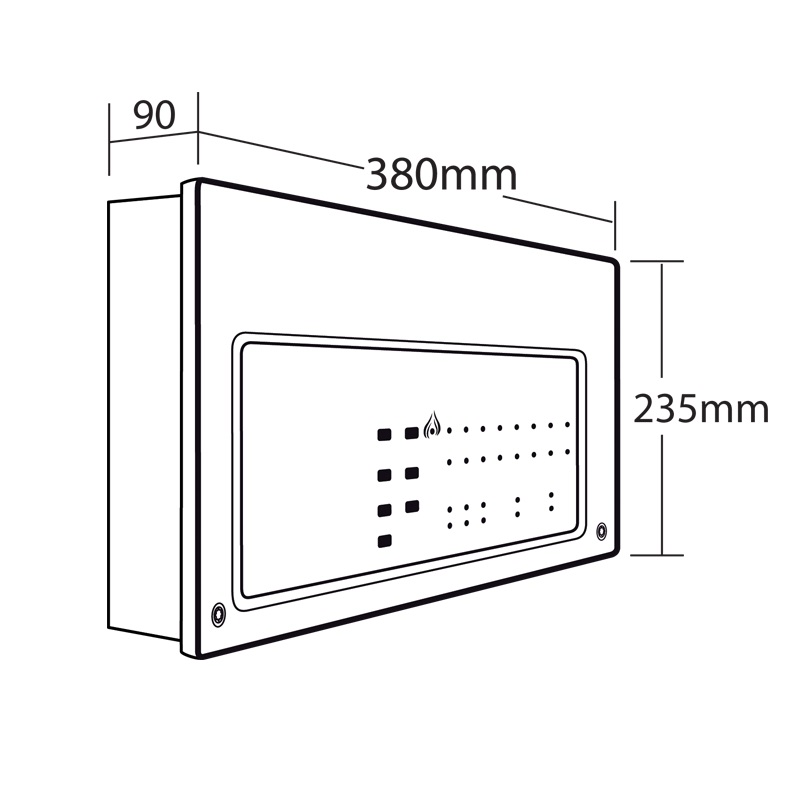

Product dimensions (mm): 380 W x 235 H x D 96mm.
IP Rating: IP30.
Weight: 1.75kg (without batteries).
Approvals/certifications: Certified to EN54-2/4 by the LPCB (176b) / (0832-CPD-1704).
Max battery size and type: 2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah.
No. of detector zone circuits: 2 (Max. length per circuit is 500m).
Max. devices per detector zone: 25 detectors (or 32 detectors/manual call points combined).
No. of conventional sounder circuits: 4 (Max. length per circuit is 500m)
