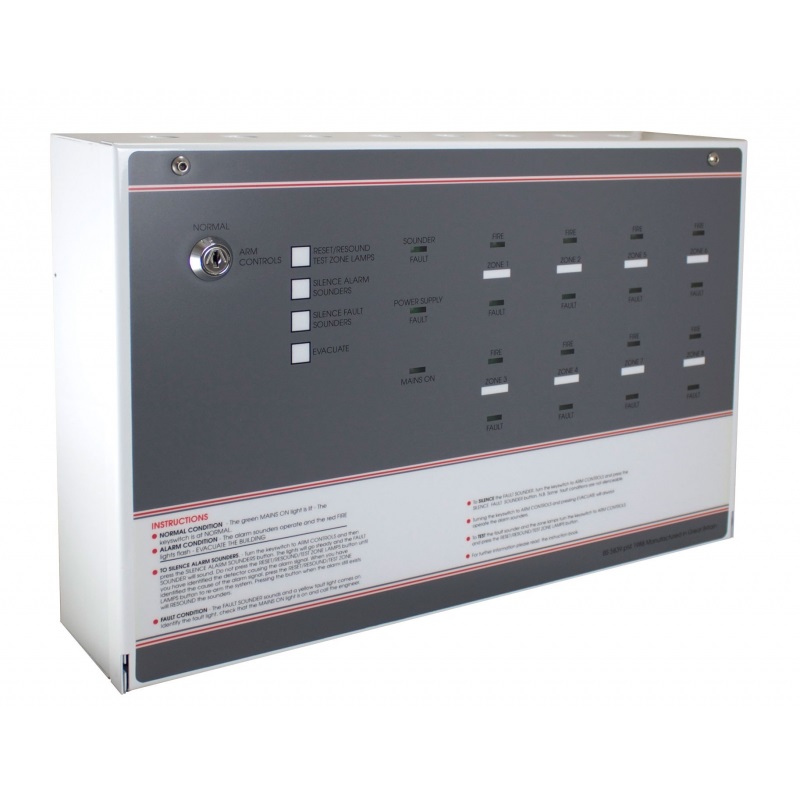

C-Tec FF516 MFP 16 Zone Conventional Fire Alarm Control Panel

Name: C-Tec FF516 MFP 16 Zone Conventional Fire Alarm Control Panel
SKU: fs05022306
Availability: InStock

AED 7,612.50 VAT included

Compare

Product Code : fs05022306 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

C-Tec FF516 MFP 16 Zone Conventional Fire Alarm Control Panel designed to comply with BS 5839-4 (this panel is not compliant with EN54-2/4 and should NOT be used in the new UK or European installations). Non-latching class change sounder input, latching fire & non-latching fault outputs (via expansion loom). Separate indicators for open circuit, short circuit, head-out, sounder & battery/power supply faults, Compatible with virtually all known conventional fire detectors including C-TEC’s ActiV range. Robust metal enclosure c/w lift-off lid & heavy-duty base connections, Up to 8 two-wire Repeaters per the Main panel.

Features

Designed to comply with BS 5839-4 (this panel in not compliant with EN54-2/4 and shouldNOTbe used in newUK or European installations).
Non-latching class change sounder input, latching fire &non-latching fault outputs (via expansion loom)
Separate indicators for open circuit, short circuit, head-out, sounder &battery/power supply faults.
Compatible with virtually all known conventional fire detectors including C-TEC's ActiV range
Zone selectable short circuit=fire facility (pre-1980 BS, no resistors in call points).
Robust metal enclosure c/w lift off lid & heavy-duty base connections
16conventional Zone circuits (expandable to 28).
Up to 8 two-wire Repeatersper Main panel
Multi-lingual variants (subject to quantities)
Space for 2x 12V 7Ah VRLA batteries.

Specifications

Product: 16 Zone Conventional Fire Alarm Control Panel
Brand: C-Tech
Model: FF516 MFP
Mains supply: 230V 50/60Hz.
Mains rated current: 700mA max
Internal power supply: 27V nominal
Total output current limited to: 3A @ 230V
Max battery size and type: 2 x 12V 7Ah VRLA connected in series
No. of detector zone circuits: 16 (Max. length per circuit is 500m). Can be extended to 28 zones using FF501Z 4 Zone extender PCB kits
Controls External (key operated): Reset/Test Scroll; Silence Alarm/Fault Sounders; Evacuate; Disable. Internal: OMT; Sounder Walk Test; Sounder Isolate; Sounder Delay; S/C equals fire; Non-latching zones.
